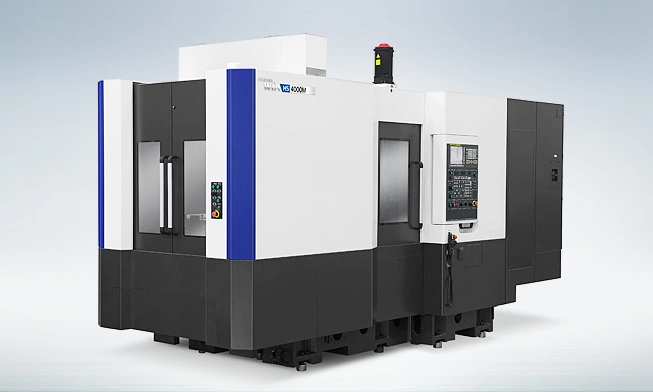

NEW HYUNDAI WIA HS4000I

OverviewThe HS4000i is general purpose horizontal machining center enabling high-efficiency, continuous machining and mass production machining in various areas. HS4000i is equipped with Hyundai's latest spindle, ensuring high-speed and stable high- precision machining with a thick, high rigidity bed. As a result, this model achieves the highest level of speed and accuracy demanded of a horizontal machining center.

Fanuc 32i-B Control

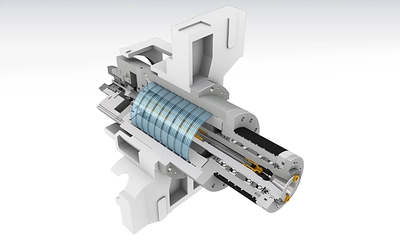

Max. 12,000 RPM Built-in spindle
Powerful 33.5 HP (25 kW) spindle motor
Fast 1,968 IPM (50m/min) X, Y and Z axis rapid traverse

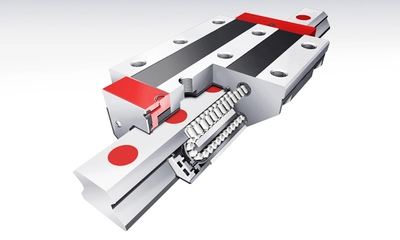

Large linear Roller guide ways
Direct turn type pallet changer with (2) Tapped pallets [T-slot_Opt.]

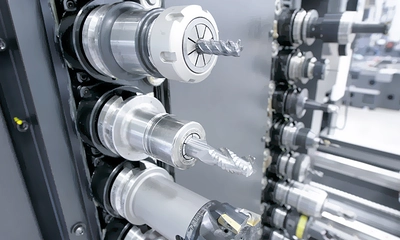

Servo motor driven Double Arm ATC 60 Tools [80, 120T_Opt.]
Big Plus Dual Contact Spindle Taper(BBT #40)
High precision spindle with angular contact ball bearings
1,000 PSI through the spindle coolant
Stable integral, step and inverse T-shape bed
High pressure air cleaning system on pallet placement
Spindle override 50% to 150%
Oil jacket spindle cooler
Massive Meehanite cast iron bed
Servo motors mounted directly to the ball screws by flexible coupling
Double Pre-Tensioned Ball screws
Qualified edge locators
High precision taper cone type pallet clamping system
Pallet rotation at pallet loading station
Program and data protection key switch
Hydraulic oil cooler
Slanted telescopic way covers
Dual cabin screw conveyors in the bed
Chip Conveyor (47" discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light

Table Size: 15.7 in.
Magazine: 60
Spindle RPM: 12,000
Spindle Taper: BIG-PLUS 40
Spindle HP: 33.5
Spindle Torque: 123.1 lbs ft
Rapids(X): 1,968
Rapids(Y): 1,968
Rapids(Z): 1,968
Travel(X): 24.4
Travel(Y): 22
Travel(Z): 25.6
