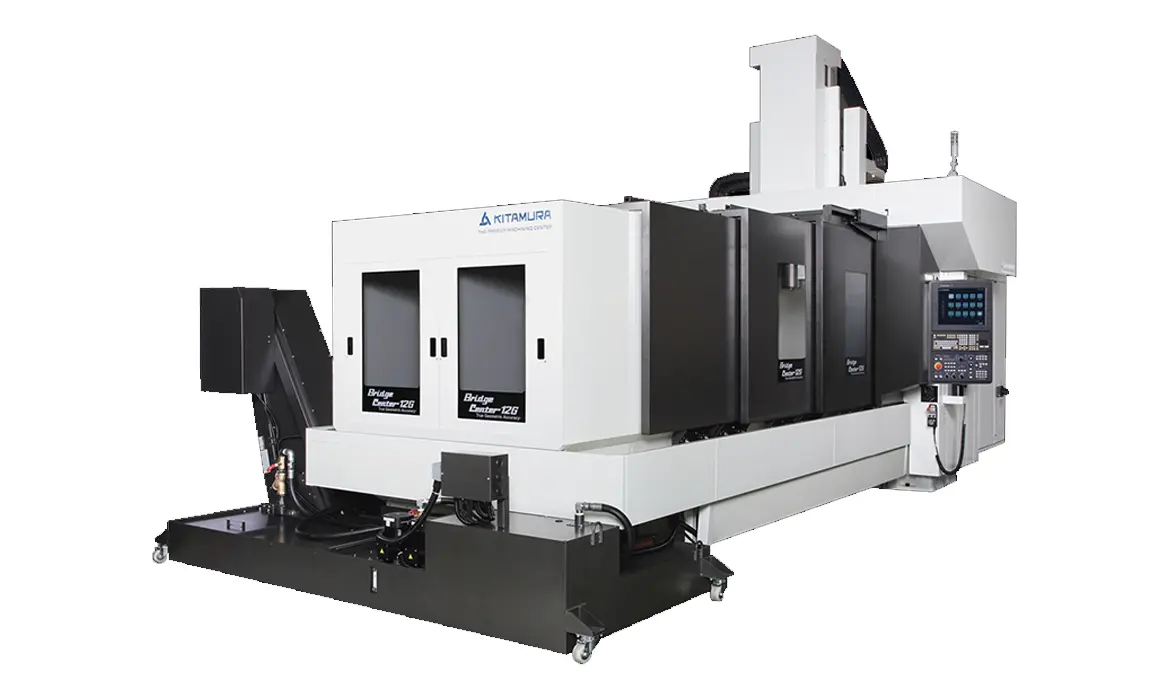

NEW KITAMURA BRIDGECENTER-12G

Table Size: (1370 x 3500mm) 53.9" x 137.8"
Travel (X, Y, Z): (3050 x 1615 x 800mm) 120.1" x 63.6" x 31.5"
Spindle Taper: NST No. 50 (HSK-A100 Opt.)
Spindle Speed: 35-12,000 min-1, 4-Step Gear Driven
Tool Storage Capacity: 40 Pcs. - 60, 80 Tools Optional
Rapid Feed (X,Y,Z): 24m/min (945ipm)
Power Requirement: 50KVA, 200v AC, 3 Phase
Positioning Accuracy: +/-0.002mm (+/- 0.000079") / Full Stroke
Repeatability +/-0.001mm (+/- 0.000039")

Table Size: 53.9 x 137.8 in.
Magazine: 40
Spindle RPM: 12,000
Spindle Taper: NST 50
Spindle HP: 53
Rapids(X): 945
Rapids(Y): 945
Rapids(Z): 945
Travel(X): 120.1
Travel(Y): 63.6
Travel(Z): 31.5
