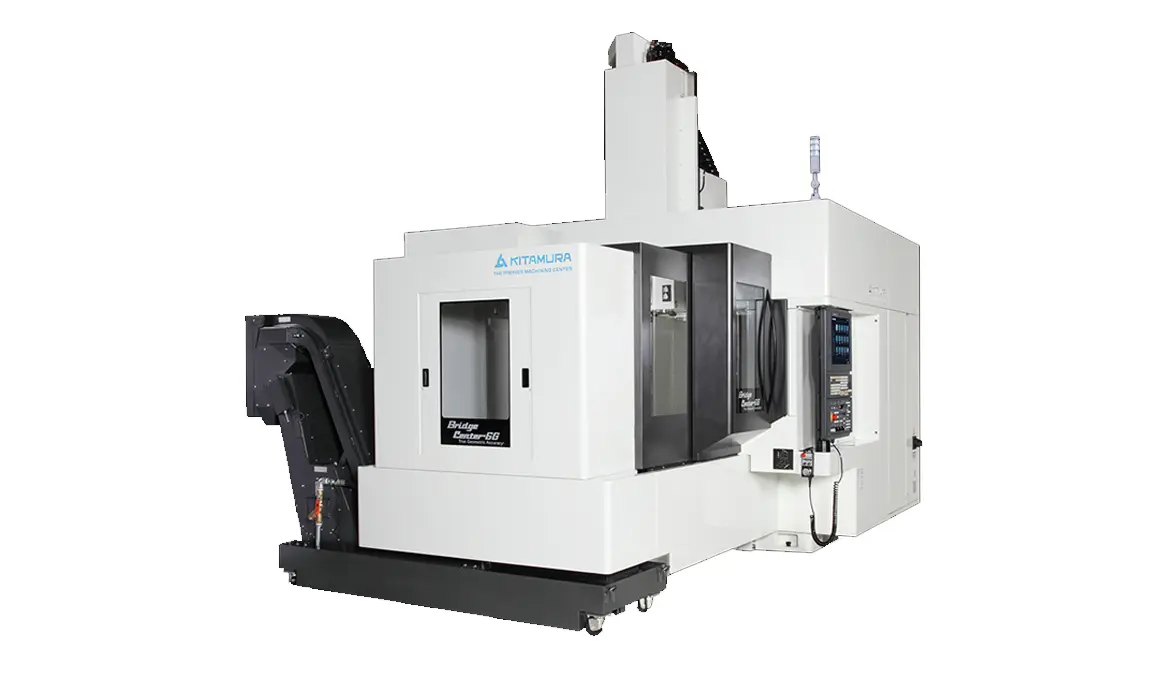

NEW KITAMURA BRIDGECENTER-6G #40
Overview
Description
OverviewThe Bridgecenter-6G#40 double column machining center is designed for high-precision machining of extra-large, heavy components. Ideal for a wide spectrum of applications - from heavy-duty cutting of molds to high accuracy machining of high-tolerance parts.
Specifications
Table Size: (900 x 1800mm) 35.4" x 70.9"
Travel (X, Y, Z): (1530 x 1095 x 710mm) 60.2" x 43.1" x 28"
Spindle Taper: NST No. 40 (HSK-A63 Opt.)
Spindle Speed: 20-20,000 min-1, 4-Step Gear Driven
Tool Storage Capacity: 440 Pcs. - 60, 80 Tools Optional
Rapid Feed (X,Y,Z): 24m/min (945ipm)
Power Requirement: 35KVA, 200v AC, 3 Phase
Positioning Accuracy: +/-0.002mm (+/- 0.000079") / Full Stroke
Repeatability +/-0.001mm (+/- 0.000039")
Table Size: 35.4 x 70.9 in.
Magazine: 60
Spindle RPM: 20,000
Spindle Taper: NST 40
Spindle HP: 30
Rapids(X): 945
Rapids(Y): 945
Rapids(Z): 945
Travel(X): 60.2
Travel(Y): 43.1
Travel(Z): 28
