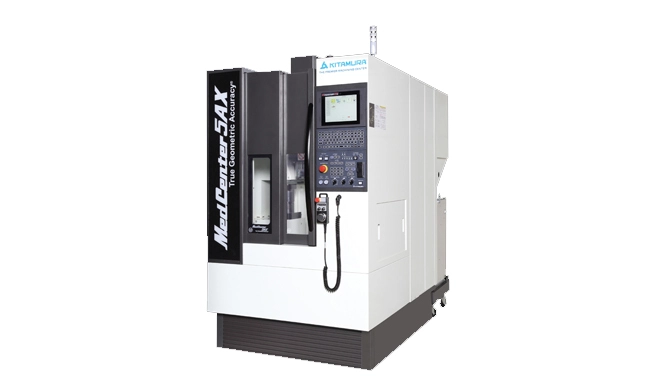

NEW KITAMURA MEDCENTER 5AX

OverviewVertical or Horizontal, Kitamura has the 5-Axis machining solution to give you the competitive edge needed to machine all of your complex, multi-sided parts in one set-up. Kitamura's Trunnion table design offers the users increased accuracy and rigidity, simple set-up and ease of programming for the operator and allows for maximum stiffness and flexibility with the ability to position the work piece closer to the spindle. 4+1 or full simultaneous control, our 5-axis line up has you covered.

Ideal for ultra-high precision simultaneous 5-axis machining of small medical parts, micro machining
Positioning Accuracy: +/- 0.000079" Full Stroke, Repeatability: +/- 0.000039"
Powerful high speed 30,000rpm HSK-E40 25HP Direct Drive Spindle
40 tool, fixed pot ATC with maximum tool weight of 4.4Lbs
High accuracy package - Linear & rotary scales, 67 million pulse encoder technology, 16mm pitch ballscrews
Optional 12-station APC available (11" x 11" (280 x 280mm) table)
Maximizes Operator Convenience
Customizable for Ultimate Productivity
High Speed Processing, Super Smooth Control Process
Fanuc User-Friendly
Unlimited Lifetime Software Upgrades
Developed for Continual Advancements
Powerful, Unique Features on the 19" LCD
Customized main menu touch screens
Visual work setting screens
Maintenance Support Functions
Video Guidance
Fanuc User Friendly
Ability to run current Fanuc programs
Little to no modification to existing programs is necessary
Looks and feels like a Fanuc Control
Comfortable and convenient for those customers who are unfamiliar with anything else
Maintenance Support Function
On screen parts identification and ability to visually enlarge machine parts list
Alarm release guidance screens - Instructs where to check should an alarm occur
Periodic maintenance screens help to maintain optimum machine condition, offer longer machine life expectancy and reduce down time.
Kitamura Monitor/Adaptive Control
Detects tool wear and controls cutting federate automatically by monitoring live spindle load during machining.
Tool life is maximized and cycle time is shortened dramatically by adapting to the change in cutting conditions.
Additional benefits include reduction in non-cut time and the prevention of machine crashes/human error.
Standard Features, Advanced CNC Technology
High precision contour control with 1680-block look ahead, 2800/blocks per second processing speeds.
1280 Meters of Memory
8GB CF/USB Data Server
700 Custom Macro Variables
102 Pairs Workpiece Coordinate System
200 Tool Offsets

Table Size: 6.7 in.
Magazine: 40
Spindle RPM: 30,000
Spindle Taper: HSK-E40
Spindle HP: 24.5
Spindle Torque: 10.8
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 1969
Travel(X): 10
Travel(Y): 13
Travel(Z): 13
