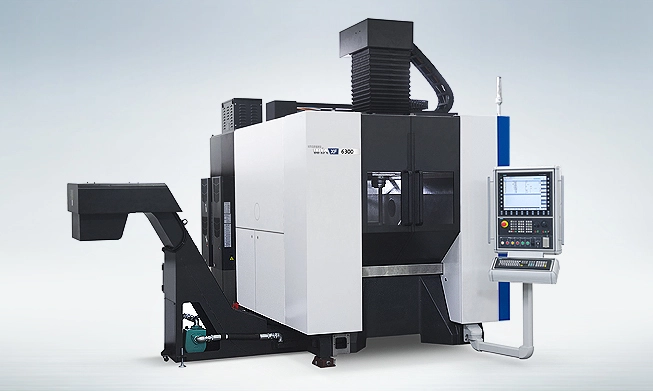

NEW HYUNDAI WIA XF6300

OverviewThe XF6300 5 Axis vertical machining center is a perfect blend of machine and technology to realize the ultimate performance in composite machining and mold machining with the highest quality, possible resultant of its cutting-edge design features such as the mono block type bed structure and X/Z axis are box-in-box structure.
High accuracy and productivity are achieved through its innovative structure.

Siemens 840D sl Control [Heidenhain TNC640, Hyundai i-TROL+_Opt.]
Max. 15,000 RPM Built-in Spindle [24,000, 40,000 RPM _opt.]
Powerful 31kW (42 HP) spindle motor
112.8 lbf.ft (153 N.m) Torque
HSK-A63 [40K: HSK-E40_Opt.]
Fast 2,362 IPM (60m/min) X, Y and Z axis rapid traverse
ATC 34 Tools [64, 102T_Opt.]
Box-in-box structure (X/Z axis)
DDM NC Tilting Rotary table
Multi step rack type ATC
High-Precision Linear Scale
X/Y/Z linear scale
A/C Axis Rotary scales
Spindle Oil chiller system
Large Linear Roller guide with roller bearings
1,000 PSI through the spindle coolant
Cutting air blow
Spindle warm up function
Auto power off
Air conditioner
Remote Manual Pulse Generator
Slanted telescopic way covers
Chip Conveyor (45" discharge height)
3 color tower signal light
Full enclosure splash guard

Table Size: 24.8 in.
Magazine: 34
Spindle RPM: 15,000
Spindle Taper: HSK-A63
Spindle HP: 42
Spindle Torque: 112.8 lbf.ft
Rapids(X): 2,362
Rapids(Y): 2,362
Rapids(Z): 2,362
Travel(X): 25.6
Travel(Y): 23.6
Travel(Z): 19.7
