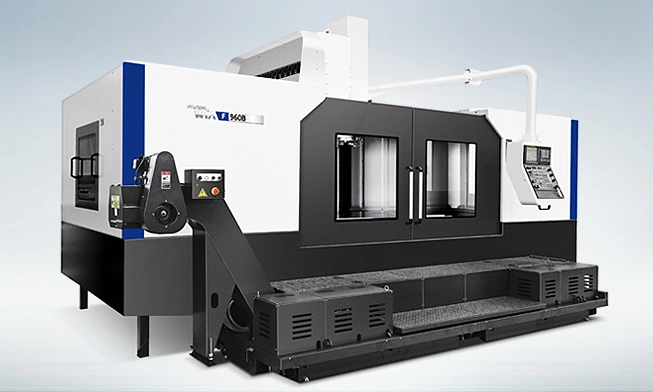

NEW HYUNDAI WIA F960B

OverviewThe F960B is designed to provide stiffness and rigidity for chatter-free cutting, agility for high-speed/hard-milling and accuracies for tight-tolerance blends. F960B offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production.

Hyundai Wia Fanuc i Control

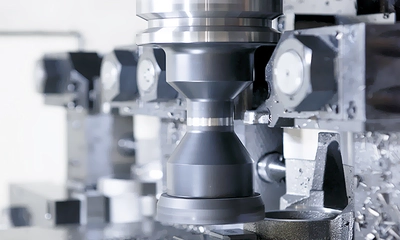

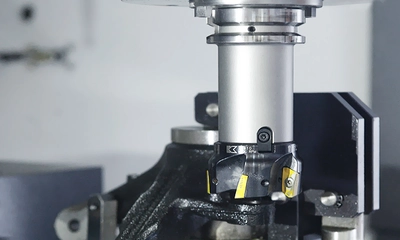

Max 8,000 RPM 2 Step Gear driven Spindle [12,000 RPM Built-in Spindle_Opt.]
Powerful 30 HP (20kW) spindle motor
Spindle Oil chiller system
BBT 50 taper
Fast 630 IPM (16m/min) X, Y and 787 IPM (20/min) Z axis rapid traverse
Box Guideways
ATC 30 Tools
"Y" shape ribbed column structure
Air Semi-Rising Slide way
Bed Flushing Coolant System
Metal plate coupling on all axes
Pendant operating panel
Auto Power Off
435 PSI through the spindle coolant
Remote Manual Pulse Generator
Spindle override 50% to 150%

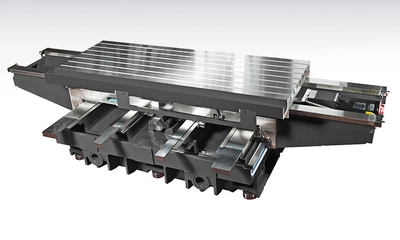

Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Slanted telescopic way covers
Interior Screw Chip Conveyor
Chip Conveyor (38" discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light
Full enclosure splash guard

Table Size: 106.3 x 37.4 in.
Spindle RPM: 8,000
Spindle Taper: BCV 50
Spindle HP: 29.5
Spindle Torque: 572.3 lbs. ft
Rapids(X): 630
Rapids(Y): 630
Rapids(Z): 787
Travel(X): 96.5
Travel(Y): 37.8
Travel(Z): 33.5
No of Tools: 30
