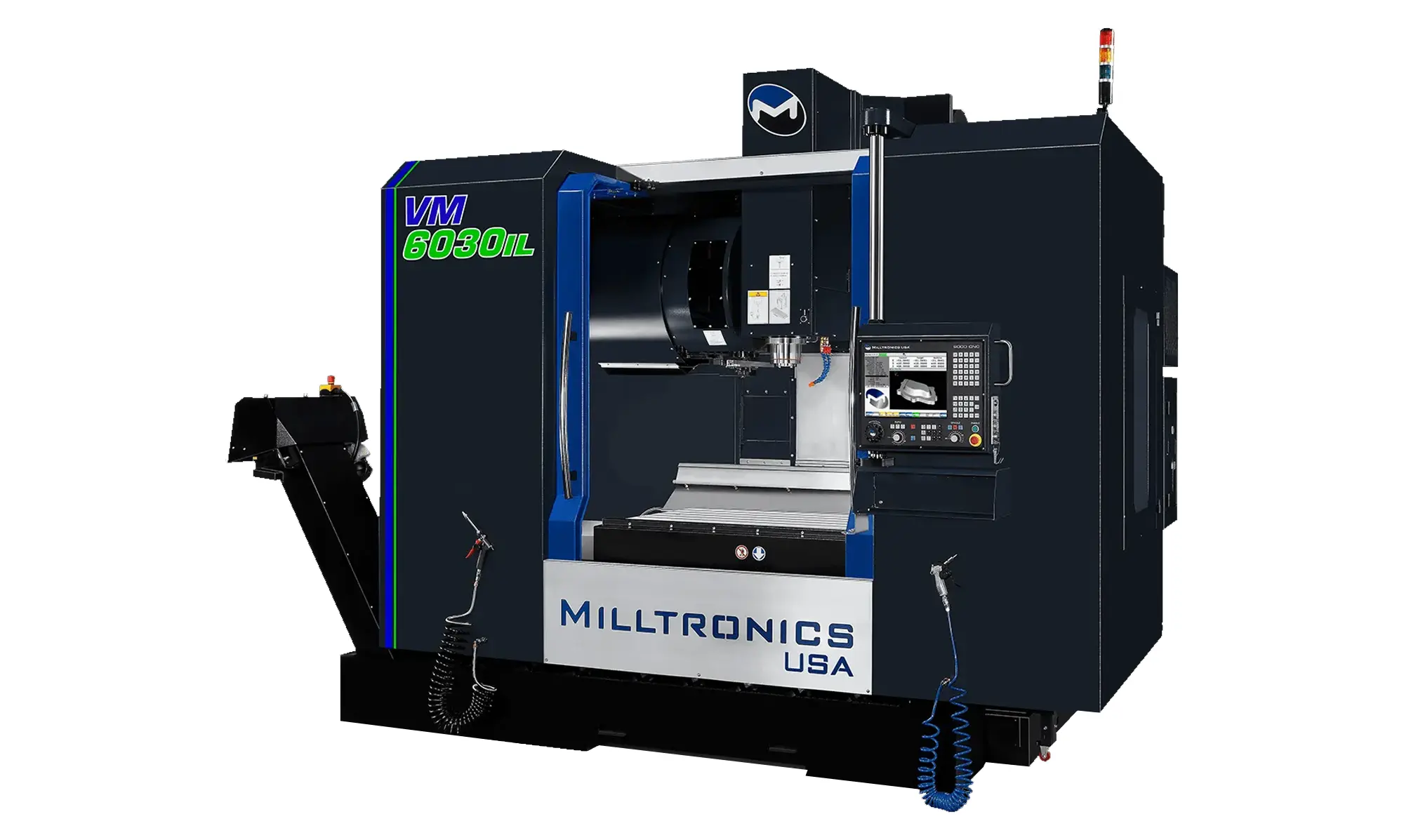

NEW MILLTRONICS VM6030IL

OverviewOur biggest inline spindle machine at 60" x 30" x 24", the VM6030IL has a 66" x 30? table and a 24 HP dual wound 12,000 RPM BIG-PLUS spindle.

Heavily ribbed one piece fine grain cast iron casting
Fully enclosed machine guard with side doors
35/45 mm roller linear way technology
Precision ground ballscrews supported at both ends
Precision ground table surface
Telescopic metal way covers
30 pocket arm type ATC
Automatic positive displacement lubrication system
High torque AC digital servo drives
High torque closed loop vector spindle drive system
Dual work lights
LCD hour meter
Spindle taper blow-out and tool release button
Single spare "M" function with CNC "wait" channel
Programmable on/off flood coolant system
Rigid tap
Edit key lockout switch
Spindle load meter
Feedrate and spindle speed overrides
Spindle air purge
End of cycle light
Chip conveyor chip removal system
Remote handwheel
Air gun
Coolant wash down gun
One Year Warranty
Coolant through spindle system
Work offset probing
4th axis options
5th axis options
Auxiliary industrial grade keyboard
Electronic spindle chiller
BT style tooling
15,000 RPM spindle
Thermal head mapping
ChipBoss TM Trochoidial Milling Software
Milltronics Shop View
Digital Setup Assistant
Programmable spray-mist and air-blast
Weight: 21800 lbs
Dimensions: 115 x 150 x 123 in
Travels: 60 x 30 x 24 in
Table Working Surface: 66 x 30 in
Max. Weight on Table: 4190 lbs
Table T-Slots: .71 in
Spindle Taper: BIG-PLUS ISO No. 40
Spindle Speed: 12000 RPM
Spindle Power: 35/25 HP
Spindle Torque: 122 ft-lbs
Spindle Nose to Table: 4-28 in
Tool Shank: CT40
Retention Knob: MAS 60
Tool Capacity / Type: 30 / Double Arm
Max. Tool Diameter: 3.15 in
Max. Tool Length: 11.8 in
Max. Tool Weight: 15.4 lbs
Rapid Traverse Rate: 1000/787 IPM
Machine Weight: 21800 lbs
Machine Height: 127.6 in
Footprint: 149.8 x 149.4 in (184.4 in with conveyor) Nominal Operating (W x D)
Power Requirement: 34 KVA / 84 Amps
Voltage Requirement: 208-240 Volts / 3 Phase

Table Size: 66 x 30 in in.
Magazine: 30 / Double Arm
Spindle RPM: 12,000
Spindle Taper: BIG-PLUS 40
Spindle HP: 35
Spindle Torque: 122
Rapids(X): 1000/787
Rapids(Y): 1000/787
Rapids(Z): 1000/787
Travel(X): 60
Travel(Y): 30
Travel(Z): 24
No of Tools: 30
