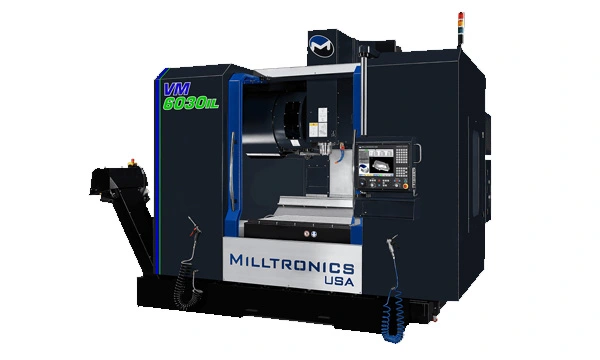

NEW MILLTRONICS VM6030IL
Overview
OverviewThe IL stands for inline since this series of vertical machining centers is equipped with a 40-taper BIG-PLUS dual-contact inline spindle. Inline spindles run smooth and quiet with minimal heat and reduced vibration providing better surface finish and longer tool life. The 10,000 RPM inline spindles have dual wound spindle motors for faster acceleration/deceleration and more torque. The IL machines also have bigger castings, faster rapids, and more standard features.
Our biggest inline spindle machine at 60" x 30" x 24", the VM6030IL has a 66" x 30" table and a 24 HP dual wound 12,000 RPM BIG-PLUS spindle.
Specs
Heavily ribbed one piece fine grain cast iron casting
Fully enclosed machine guard with side doors
35/45 mm roller linear way technology
Precision ground ballscrews supported at both ends
Precision ground table surface
Telescopic metal way covers
30 pocket arm type ATC
ISO No. 40
Automatic positive displacement lubrication system
High torque AC digital servo drives
High torque closed loop vector spindle drive system
Dual work lights
LCD hour meter
Spindle taper blow-out and tool release button
Single spare "M" function with CNC "wait" channel
Programmable on/off flood coolant system
Rigid tap
Edit key lockout switch
Spindle load meter
Feedrate and spindle speed overrides
Spindle air purge
End of cycle light
Chip conveyor chip removal system
Remote handwheel
Air gun
Coolant wash down gun
One Year Warranty
Table Size: 60 x 30 in.
Spindle RPM: 10,000
Spindle Taper: BIG-PLUS 40
Spindle HP: 35
Rapids(X): 1000
Rapids(Y): 1000
Rapids(Z): 787
Travel(X): 60
Travel(Y): 30
Travel(Z): 24
No of Tools: 30
