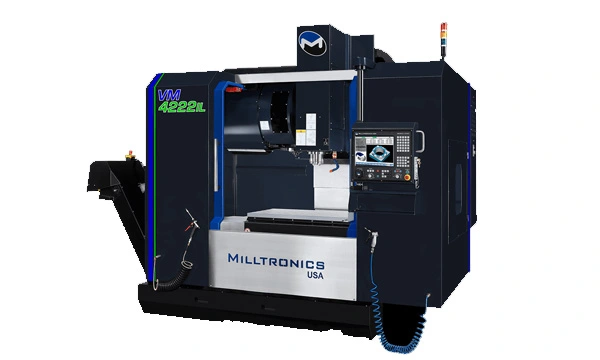

NEW MILLTRONICS VM4222IL

OverviewThe IL stands for inline since this series of vertical machining centers is equipped with a 40-taper BIG-PLUS dual-contact inline spindle. Inline spindles run smooth and quiet with minimal heat and reduced vibration providing better surface finish and longer tool life. The 10,000 RPM inline spindles have dual wound spindle motors for faster acceleration/deceleration and more torque. The IL machines also have bigger castings, faster rapids, and more standard features.
Our most popular size IL Series, the VM4222IL features travels of 42" x 22" x 24" and a 46" x 22" table as well as a 24 HP dual wound 12,000 RPM BIG-PLUS spindle

Heavily ribbed one piece fine grain cast iron casting
Fully enclosed machine guard with side doors
35/45 mm roller linear way technology
Precision ground ballscrews supported at both ends
Precision ground table surface
Telescopic metal way covers
30 pocket arm type ATC
BIG-PLUS ISO No. 40
Automatic positive displacement lubrication system
High torque AC digital servo drives
High torque closed loop vector spindle drive system
Dual work lights
LCD hour meter
Spindle taper blow-out and tool release button
Single spare "M" function with CNC "wait" channel
Programmable on/off

Table Size: 46 x 22 in.
Spindle RPM: 10,000
Spindle Taper: BIG-PLUS 40
Spindle HP: 24
Rapids(X): 1200
Rapids(Y): 1200
Rapids(Z): 1000
Travel(X): 42
Travel(Y): 22
Travel(Z): 24
No of Tools: 30
