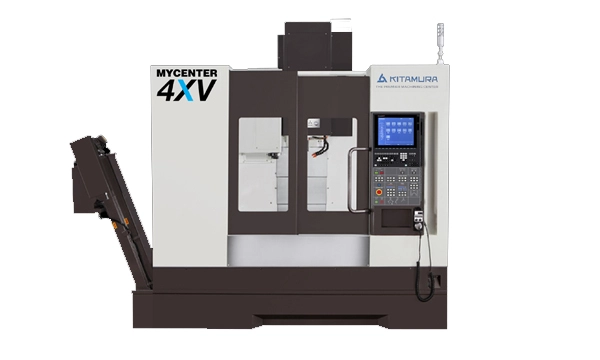

NEW KITAMURA MYCENTER-4XV

OverviewInstall a Mycenter-4XV and that small amount of floorspace will become the most productive in your shop! This VMC is simply amazing. Power, speed, capacity and a host of performance features including Kitamura's exclusive Arumatik Mi Pro CNC . . . the Mycenter-4XV's got it all!

Class Leading 40-Tool standard ATC

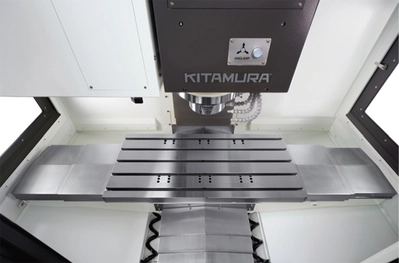

Large work envelope within a uniquely compact design
Thermally stable, Heavily ribbed stiff cast Meehanite C-Frame construction

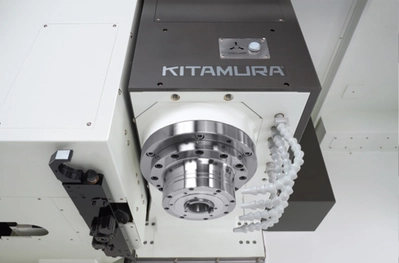

#40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine
High Speed Processing Kitamura Arumatik-Mi Pro controller offers up to 16x faster processing speeds!
Large 15" Touch Screen Color LCD
1680 Block Look-Ahead
2,800 Block Per Second Processing Speed
High-Speed, High-Accuracy Control
Super Smooth Surface (SSS) Control
Work Coordinate Offsets - 54 Sets
5120 Meters Memory
USB Memory Interface and Ethernet I/F for
Faster and Smoother Program Transfer
Macro Variable, 700 Sets
Tool Offset, 400Pcs, 6 Digits
3-Dimensional Tool Radius Compensation
Helica
Interpolation
Circular Interpolation
Optiona
Block Skip
Inverse Time Feed
Alarm Guidance

Table Size: 44.1 x 19.7 in.
Magazine: 40
Spindle RPM: 15,000
Spindle Taper: 40 NST
Spindle HP: 41
Rapids(X): 2047
Rapids(Y): 2047
Rapids(Z): 1890
Travel(X): 40.2
Travel(Y): 20.1
Travel(Z): 20.1
