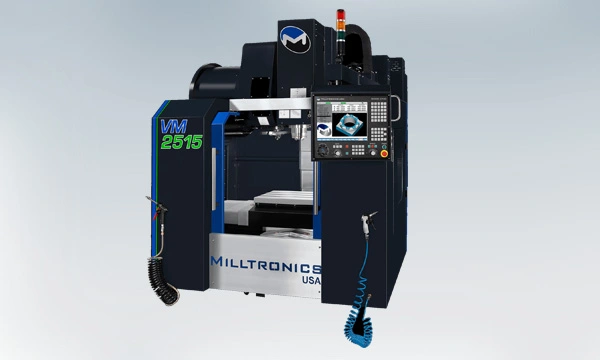

NEW MILLTRONICS VM2515

OverviewThe Milltronics VM2515 has 25" x 15" x 20" travels and a 30" x 16" table that supports 3,140 lbs table weight at full speed. The VM2515 has a 15 HP 10,000 RPM BIG-PLUS spindle.

Heavily ribbed one piece fine grain cast iron casting
Fully enclosed machine guard with side doors
30/35 mm linear way technology
Precision ground ballscrews supported at both ends
Precision ground table surface
Telescopic metal way covers
20 pocket double arm ATC
CAT 40
Automatic positive displacement lubrication system
High torque AC digital servo drives
High torque closed loop vector spindle drive system
Work light (right side)
LCD hour meter
Spindle taper blow-out and tool release button
Spare M function with CNC wait channel
Programmable on/off flood coolant system
Rigid tap
Edit key lockout switch
Spindle load meter
Feedrate and spindle speed overrides
Spindle air purge
End of cycle light
One Year Warranty

Table Size: 30 x 16 in.
Spindle RPM: 10,000
Spindle Taper: BIG-PLUS 40
Spindle HP: 15
Rapids(X): 945
Rapids(Y): 945
Rapids(Z): 945
Travel(X): 25
Travel(Y): 15
Travel(Z): 20
