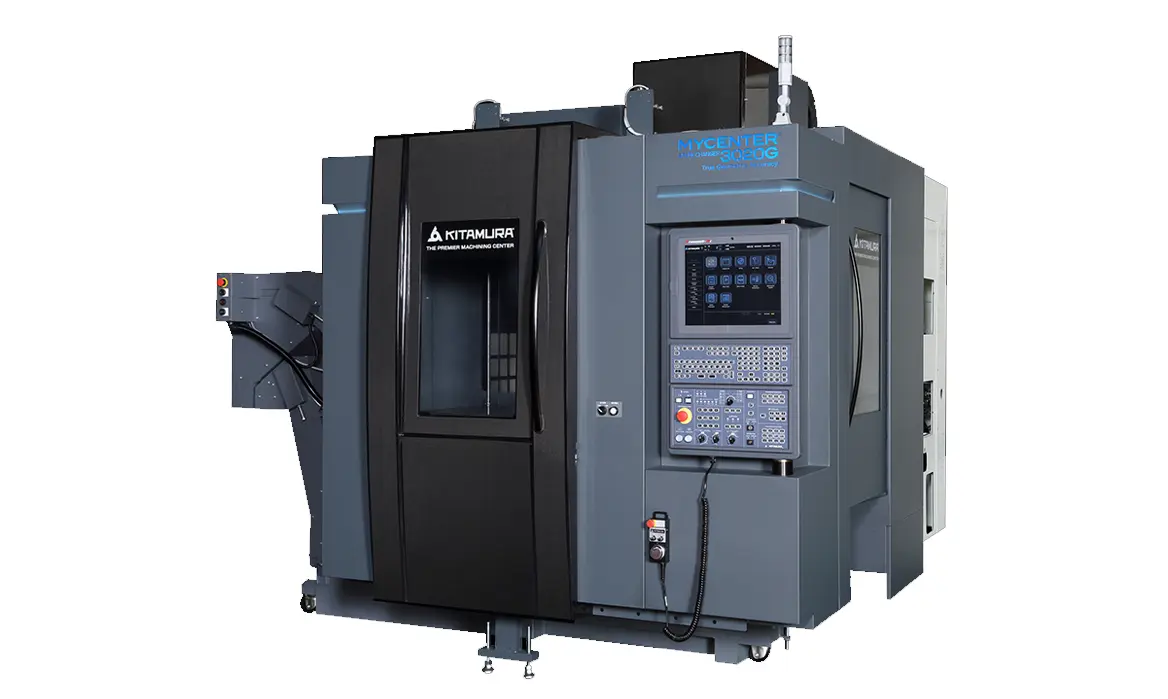

NEW KITAMURA MYCENTER-3020G
Overview
Description
OverviewWhen maximum production is paramount, the Mycenter-3020G Sparkchanger vertical machining center delivers the combination of a high-speed 180-degree rotating pallet changer and lightning-quick tool changes.
Specifications
Table Size: 19.7" x 33.9"; 2-Station Automatic Pallet Changer
Travel (X, Y, Z): 30" x 20.1" x 20.1"
Spindle Taper: NST No. 40
Spindle Speed: 20,000
Tool Storage Capacity: 30 Pcs.
Tool Change Time (T-T/C-C): 2.4 Sec. /4.6 Sec. Minimum
Rapid Feed (X,Y,Z): 50m/min (1,969ipm) x 36m/min (1,417ipm)
Power Requirement: 30KVA, 200v AC, 3 Phase

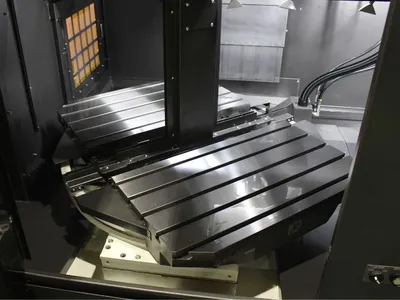

80 degree rotating 2-station APC for high production requirements
Positioning Accuracy: +-0.000079" Full Stroke,
Repeatability +-0.000039"
Rigid Meehanite casting with solid box ways on X & Y axes
High torque 20HP AC, 20,000 rpm 4-steap gear driven, dual contact spindle
Plumbed and ready for coolant thru the spindle - can be added in field

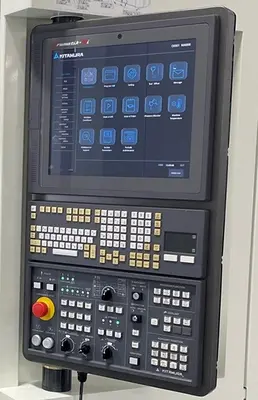

Arumatik-Mi CNC with High speed, high accuracy control/8,190 block look ahead speeds
Flexibility to add 4th or 5th axis interface in the field
Table Size: 19.7 x 33.9 in.
Magazine: 30
Spindle RPM: 20,000
Spindle Taper: NST 40
Spindle HP: 20
Rapids(X): 1969
Rapids(Y): 1969
Rapids(Z): 1417
Travel(X): 30
Travel(Y): 20.1
Travel(Z): 20.1
