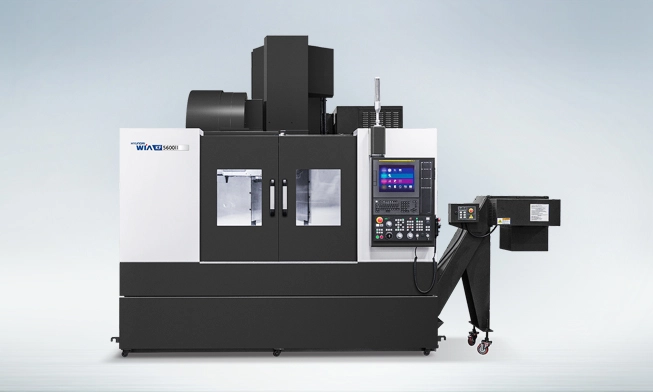

NEW HYUNDAI WIA KF5600 II

OverviewThe KF5600II is designed by HYUNDAI WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF5600II offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production

Hyundai Wia Fanuc - Smart Plus Control
Powerful 24.8 HP (18.5 kW) spindle motor (S3 15%)
Max. 12,000 RPM Direct Driven Spindle [15,000 RPM _Opt.]
49.2” x 22” (1,250 x 560mm) Table Size
2,205 lbs (1,000 kg) Load Capacity
Spindle Oil chiller system [8K _ Opt.]
BCV # 40 taper [HSK tool holder_Opt.]
Fast 1,417 IPM (36m/min) X, Y and 1,181 IPM (30m/min) Z axis rapid traverse
Large Linear Roller guide with roller bearings

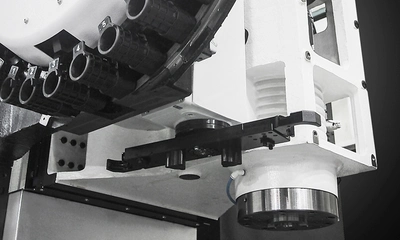

ATC 30 Tools [40T_Opt.]
“Y” shape ribbed column structure
Metal plate coupling on all axes
Embed operating panel
290 PSI through the spindle coolant
Remote Manual Pulse Generator
Spindle override 0% to 200% (10% Unit)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Slanted telescopic way covers
Chip Conveyor (38” discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light
Full enclosure splash guard
15” Touch-type monitor

Table Size: 49.2 x 22 in.
Spindle RPM: 12,000
Spindle Taper: BCV 40
Spindle HP: 24.8
Spindle Torque: 87
Rapids(X): 1417
Rapids(Y): 1417
Rapids(Z): 1417
Travel(X): 43.3
Travel(Y): 22
Travel(Z): 20.5
No of Tools: 30
