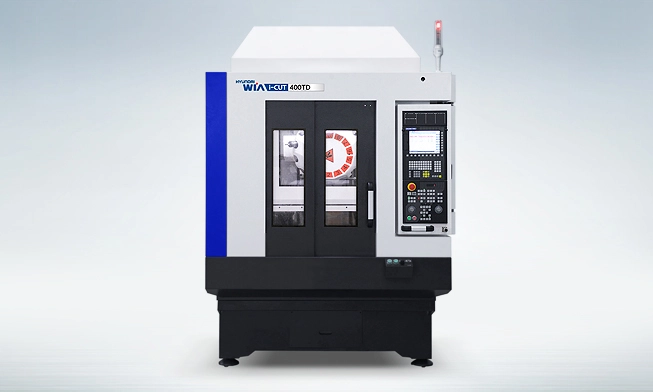

NEW HYUNDAI WIA I-CUT400TD

OverviewThe i-CUT400TD maximizes productive efficiency improvement of mass production parts such as automobile, medical, and Information Technology parts. I-CUT400TD is designed by Hyundai WIA with years of expertise and the latest technology, maximizes productivity while maintaining rigidity and accuracy.

Hyundai Wia FANUC i-Series Smart Plus control
12,000 RPM direct-driven spindle
17.4 HP (13 kW) spindle motor
BBT No. 30 spindle taper
Rapid traverse rates: 1,890 IPM (48 m/min) on X, Y, and Z axes
Linear roller guideway on Z-axis
Automatic tool changer with 14 tools (21 tools optional)

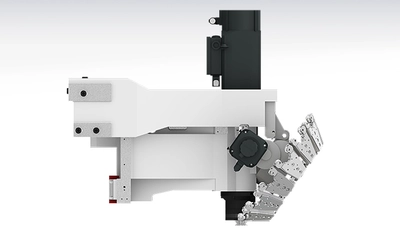

Servo-driven armless ATC unit
Double-anchored, pre-tensioned ball screws
290 PSI through-spindle coolant
Remote manual pulse generator
Spindle speed override range: 0 to 150 percent in 10 percent increments
Massive Meehanite cast iron machine base
Rigid tapping capability
Program and data protection key switch
Metered piston distributor lubrication system
Slanted telescopic way covers
Flood coolant system with large separate coolant tank
Single-color tower signal light
Full enclosure splash guard

Table Size: 15.7 x 25.6 in.
Magazine: 14
Spindle RPM: 12,000
Spindle Taper: BBT 30
Spindle HP: 17.4
Rapids(X): 1890
Rapids(Y): 1890
Rapids(Z): 1890
Travel(X): 20.5
Travel(Y): 15.7
Travel(Z): 13
