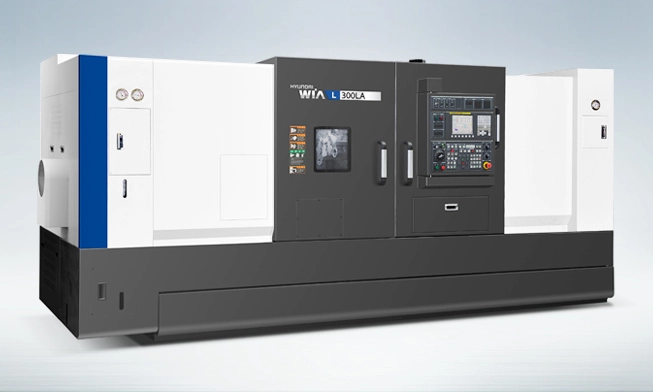

NEW HYUNDAI WIA L300LMSA
Overview
Description
OverviewThe L300MSA/LMSA features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
Specifications
Fanuc 32i Series controller
Ø16.1" (Ø 410mm) Max. turning diameter
49.2"(1250mm" (680 mm) turning length
Main spindle: 3,500 rpm 30HP (22kW) / 364 lbf. ft. torque 10" chuck Ø3.0" (Ø76mm) bar capacity
3,500 rpm
30HP (22kW) / 364 lbf. ft. torque
10" chuck
Ø3.0" (Ø76mm) bar capacity
Sub spindle: 4,000 rpm 15 HP (11kW) / 103.3 lbf. ft. torque 8" chuck Ø2.6" (Ø65mm) bar capacity 0.001 degree index
4,000 rpm
15 HP (11kW) / 103.3 lbf. ft. torque
8" chuck
Ø2.6" (Ø65mm) bar capacity
0.001 degree index

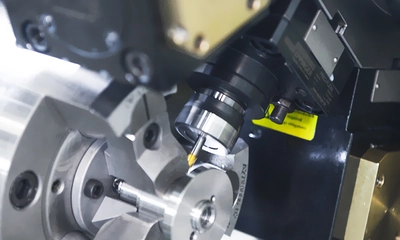

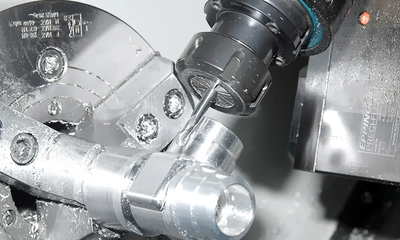

Live Tool: 4,000 rpm BMT 65P 7.4HP / 25.8 ibf.ft torque
4,000 rpm BMT 65P
7.4HP / 25.8 ibf.ft torque
Belt driven spindle
Solid box way construction
787 IPM (20m/min) X, 945 IPM (24m/min) Z and 787 IPM (20m/min) ZB rapid speed
Manual Tool setter
Tool size: 1"/Ø 2" (?25mm/Ø50mm)
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 16.1 in.
Max Turn Len: 26.8 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 30
Spindle Torque: 364
Rapids(X): 787
Rapids(Z/B): 787
Rapids(Z): 787
Travel(X): 11.4
Travel(Z): 53.1
Travel(Z/B): 47.2
No of Tools: 12
