NEW HYUNDAI WIA L300MSC

OverviewThe L300MSC features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.

Fanuc 32i Series controller
Fanuc Alpha spindle drive and Alpha X / Z servo motors
Ø19.7" (Ø500mm) Max. turning diameter
23.6" (600mm) turning length
Main spindle:
Max. 3,000 rpm [Max. 2,800rpm_Big Bore]
30HP (22kW) (S3 60%) / 581 lbf.ft torque at 267 RPM
12" 3-jaw chuck [15"_Big Bore]
Ø3.5" (Ø90mm) bar capacity [4" (102mm)_Big Bore]
Max. 3,000 rpm [Max. 2,800rpm_Big Bore]
30HP (22kW) (S3 60%) / 581 lbf.ft torque at 267 RPM
12" 3-jaw chuck [15"_Big Bore]
Ø3.5" (Ø90mm) bar capacity [4" (102mm)_Big Bore]
Sub spindle:
Max. 4,000 rpm
15 HP (11kW) (30min, S3 60%) / 103.2 lbf.ft torque at 750 RPM
8" 3-jaw chuck
Ø2.6" (Ø65mm) bar capacity
0.001 degree index
Max. 4,000 rpm
15 HP (11kW) (30min, S3 60%) / 103.2 lbf.ft torque at 750 RPM
8" 3-jaw chuck
Ø2.6" (Ø65mm) bar capacity
0.001 degree index

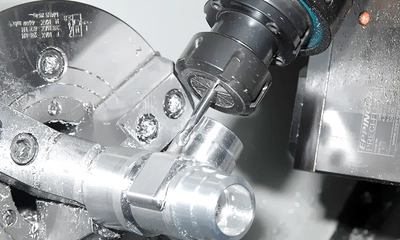

Live Tool:
Max. 4,000 rpm BMT 65P
7.4HP (30min) / 25.8 lbf.ft torque at 1,500 RPM
Max. 4,000 rpm BMT 65P
7.4HP (30min) / 25.8 lbf.ft torque at 1,500 RPM
Belt driven spindle
Solid box way construction
787 IPM (20m/min) X, 945 IPM (24m/min) Z and 787 IPM (20m/min) ZB axis rapid speed
Manual Tool setter
Tool size: ?1" / Ø2" (?25mm / Ø50mm)
87 PSI coolant system [290 PSI_Opt.]
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard

Max Turn Dia: 19.7 in.
Max Turn Len: 23.6 in.
Chuck Size: 8 in.
Spindle RPM: 3,000
Spindle HP: 30
Spindle Torque: 580
Rapids(X): 787
Rapids(Z): 945
Travel(X): 14
Travel(Z): 29.5
No of Tools: 12
