NEW HYUNDAI WIA L300MC

OverviewThe L300MC features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.

Hyundai Wia Fanuc i series controller
Ø19.7" (Ø 500mm) Max. turning diameter
23.6" (600 mm) turning length
Ø3.5" (Ø 90mm) Bar capacity
Powerful 30 HP (22 kW)
High Torque 580.7 lbf. ft (787.3N.m)
12" chuck (15" : opt)
RPM 3,000 spindle
A2-8 spindle nose
Belt driven spindle

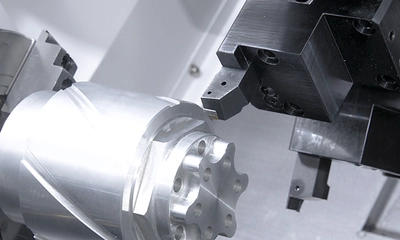

Heavy Duty 12 station BMT65 turret

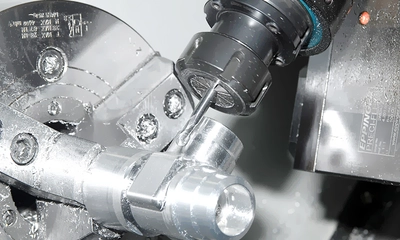

Live Tool: 4,000 rpm 7.5 HP(30min) / 25.8 ibf.ft torque
Solid box way construction
787 IPM (20m/min) X, and 945 IPM (24m/min) Z rapid speed
Manual Tool setter
Tool size: 1"/Ø 2" (25mm/Ø50mm)
Programmable tail stock - Tow-along type
87 PSI coolant system (290 PSI-opt)
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard

Max Turn Dia: 19.7 in.
Max Turn Len: 23.6 in.
Chuck Size: 12 in.
Spindle RPM: 3,000
Spindle HP: 30
Spindle Torque: 580
Rapids(X): 787
Rapids(Z): 945
Travel(X): 14
Travel(Z): 29.5
No of Tools: 12
