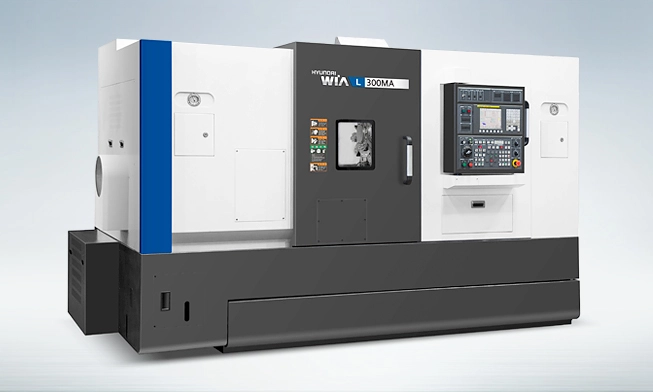

NEW HYUNDAI WIA L300MA
Overview
Description
OverviewThe L300MA/LMA features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
Specifications
Fanuc i Series controller
Ø16.1" (Ø 410mm) Max. turning diameter
26.8" (680 mm) turning length
Ø3" (Ø 76mm) Bar capacity
Powerful 30 HP (22 kW)
High Torque 364 lbf. ft (493N.m)
10" chuck
RPM 3,500 spindle
A2-8 spindle nose
Belt driven spindle
Heavy Duty 12 station BMT 65P turret
Live Tool:
4,000 rpm 7.5 HP(30min) / 25.8 ibf.ft torque
4,000 rpm
7.5 HP(30min) / 25.8 ibf.ft torque
45° slanted one-piece bed structure
Solid box way construction
787 IPM (20m/min) X, and 945 IPM (24m/min) Z rapid speed
Manual Tool setter
Tool size: 1"/Ø 2" (25mm/Ø50mm)
Programmable tail stock - Tow-along type
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 16.1 in.
Max Turn Len: 26.8 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 30
Spindle Torque: 364
Rapids(X): 787
Rapids(Z): 29.5
Travel(X): 11.4
Travel(Z): 29.5
No of Tools: 12
