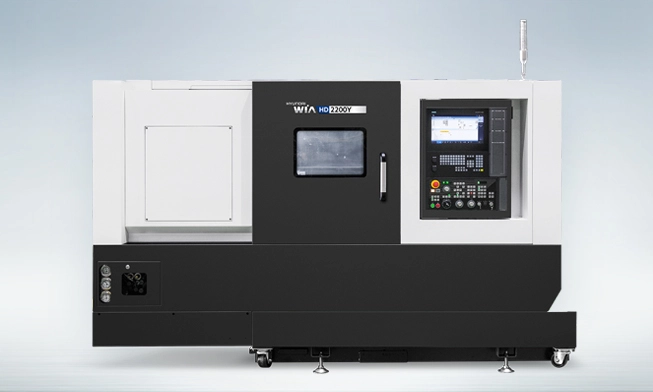

NEW HYUNDAI WIA HD2200Y

OverviewThe HD2200Y features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA' s advanced technological features to provide exceptional value.

Hyundai Wia Fanuc i series controller
4,000 rpm Belt type spindle
25HP (18.5kW) / 152 lbf.ft torque
8" chuck
Ø2.6" (Ø65mm) bar capacity
Ø11.8" (Ø 300mm) Max. turning diameter
24" (610mm) turning length
6,000 rpm
7.4HP (5.5kW) / 38.7 lbf.ft torque
30° slanted one-piece bed structure
Box guideways
945 IPM (24 m/min) X, 1,181 IPM (30 m/min) Z axis ripid traverse
394 IPM (10 m/min) Y axis rapid traverse
Programmable Tail Stock (Tow-along type)
Tool size: 1" / Ø1.6" (25mm / Ø40mm)
87 PSI coolant system (290 PSI_opt.)
Double Pre-Tensioned Ball screws
Chip Conveyor
Separate coolant tank
3 color tower signal light
Full enclosure splash guard
Auto parts catcher
Y-axis with 4.3" stroke
BMT 55P 12 station turret
Full contouring C-axis

Max Turn Dia: 24 in.
Max Turn Len: 24.0 in.
Chuck Size: 8 in.
Spindle RPM: 4,000
Spindle HP: 25
Spindle Torque: 152.1
Rapids(X): 944
Rapids(Y): 394
Rapids(Z): 1181
Travel(X): 8.5
Travel(Y): 4.3
Travel(Z): 26.8
No of Tools: 12
