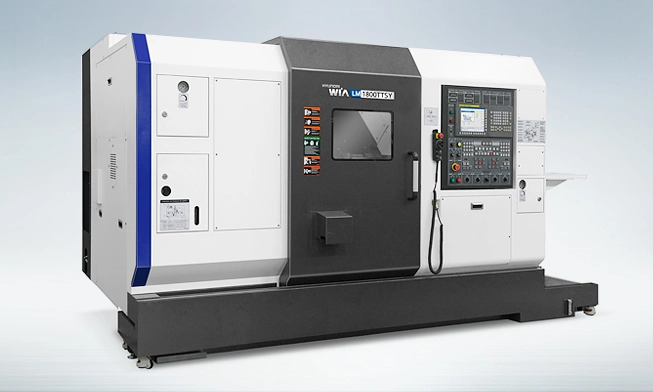

NEW HYUNDAI WIA LM1800TTSY
Overview
Description
OverviewThe LM1800TTSY features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X & Y axis, and roller guideway (Z & ZB axis) offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value..
Specifications
Fanuc 31i B controller
Main & Sub spindle:
5,000 rpm built-in spindle 8" chuck Ø2.6" (Ø65mm) bar capacity
5,000 rpm built-in spindle
Ø9.1" (Ø230mm) Max. turning diameter
26.5" (673mm) turning length
Live Tool: 5,000 rpm 7.4 HP (30 min) / 34.7 lbf.ft torque
5,000 rpm
7.4 HP (30 min) / 34.7 lbf.ft torque
45° slanted one-piece bed structure
X & Y axis Box guideways and Z & ZB axis Roller guideways
787 IPM X1, X2 and 1,575 IPM Z1, Z2 and 295 IPM Y axis rapid speed
Auto Tool setter
Tool size: 0.75" / Ø1.25" (19.05mm / Ø31.75mm) (Triple I/D Ø 1)
87 PSI coolant system (290 PSI_opt.)
Chip Conveyor (47" discharge height)
3 color tower signal light
Sub parts unloader
Pneumatic type part ejector in sub spindle
Main parts catcher preparation
Y-axis with +/- 3.9" stroke
BMT 55P 12 station turret
Full contouring C-axis
Max Turn Dia: 9.1 in.
Max Turn Len: 26.5 in.
Chuck Size: 8 in.
Spindle RPM: 5,000
Spindle HP: 30
Spindle Torque: 264
Rapids(X1/X2): 787
Rapids(Z1/Z2): 1575
Rapids(Z/B): 787
Travel(X1/X2): 6.5/6.7
Travel(Z/B): 3.9
No of Tools: 12
