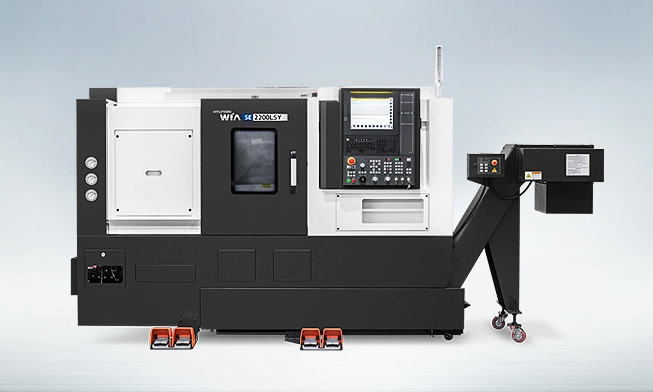

NEW HYUNDAI WIA SE2200LSY
Overview
OverviewThe SE2200LSY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Roller guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value.
Specs
Hyundai Wia Fanuc - Smart Plus controller
Fanuc Beta spindle drive and Beta X / Z servo motors

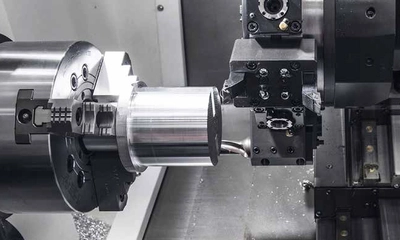

Main spindle:
Max. 4,500 rpm Belt driven spindle
20.1 HP (15 kW) (S2 15min) / 124.6 lbf.ft (169 N.m) torque at 857 rpm
8" 3-jaw chuck
Ø2.6" (Ø65mm) bar capacity
Sub spindle:
10.1 HP (7.5 kW) (S3 15%) / 46.9 lbf.ft (63.6 N.m) torque at 1,125 rpm
5" 3-jaw chuck
Ø1.3" (Ø32mm) bar capacity
Ø11.8" (Ø300mm) Max. turning diameter
20.0" (508mm) turning length

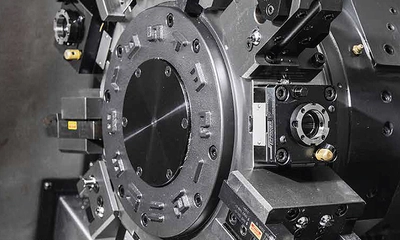

BMT 45P 12 station turret
Y-axis with 4.3" (110mm) stroke
Tool size: ?3/4" / Ø1.26" (20mm / Ø32mm)
Live Tool:
Max. 6,000 rpm (BMT 45P)
3.69 HP (2.75 kW)_(S2 15min) / 19.3 lbf.ft (26.2 N.m) torque at 1,000 rpm
30° slanted one-piece bed structure
High-Speed Roller guideways
1,181 IPM (30 m/min) X and 1,417 IPM (36 m/min) Z axis rapid speed
394 IPM (10 m/min) Y and 591 IPM (15 m/min) ZB axis rapid speed
87 PSI coolant system [290 PSI_Opt.]
Double Pre-Tensioned Ball screws
Chip Conveyor (47" discharge height)
Separate coolant tank
3 color tower signal light
Auto parts catcher
Full contouring C-axis
Max Turn Dia: 11.8 in.
Max Turn Len: 20 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 20
Spindle Torque: 46.9 lbf.ft
Rapids(X): 1,417
Rapids(Y): 394
Rapids(Z/B): 591
Rapids(Z): 1,417
Travel(X): 8.3
Travel(Y): 4.3
Travel(Z): 22
Travel(Z/B): 22
No of Tools: 12
