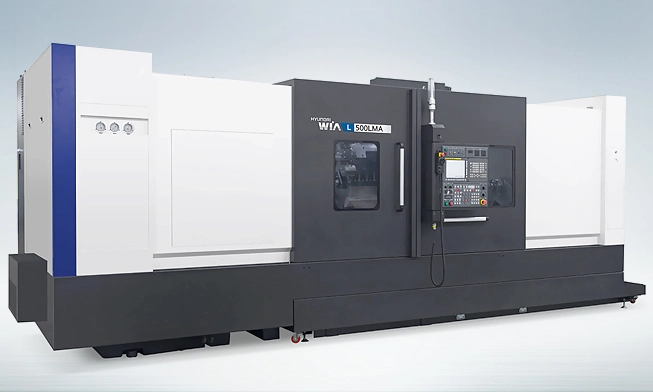

NEW HYUNDAI WIA L500LA
Overview
Description
OverviewThe L500LA features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
Specifications
Fanuc 32i-B Control
Ø28.3" (720mm) Max. turning diameter
83" (2,109mm) turning length
Ø6.5" (165mm) Bar capacity
Powerful 60HP (45kW) spindle motor
High Torque 3,033lbs/ft. (4,112N.m)
21" chuck [24" chuck : opt]
RPM 1,500 spindle [24" chuck : 1,400rpm]
A1-15 spindle nose
2 Step gear box embedded head stock
Travel (X/Z): 15.7"(400mm) / 87"(2,210mm)
Box guideways
Rapid speed: 787 IPM (20m/min) X, and 709 IPM (18m/min)
Programmable MT# 5 Built in tail stock
Auto Tool setter
Tool size: 1.25"/Ø 3" (?32mm/Ø80mm)
30O Slanted Bed Structure
87 PSI coolant system (290 PSI-opt)
Steady Rest Preparation (1)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Program and data protection key switch
Chip Conveyor (47" discharge height)
Separate coolant tank
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 28.3 in.
Max Turn Len: 83 in.
Chuck Size: 21 in.
Spindle RPM: 1,500
Spindle HP: 60
Spindle Torque: 3033
Rapids(X): 787
Rapids(Z): 709
Travel(X): 15.7
Travel(Z): 87
No of Tools: 10
