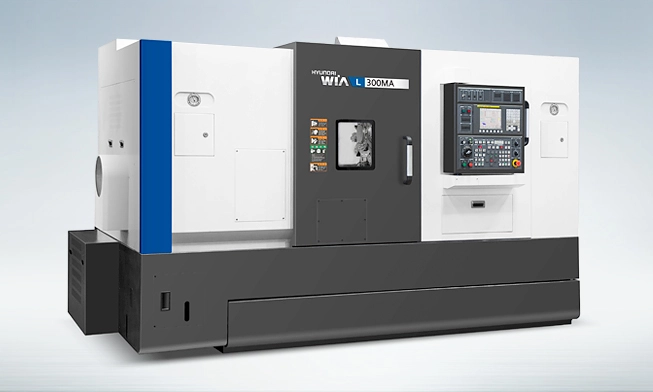

NEW HYUNDAI WIA L300A
Overview
Description
OverviewThe L300A features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
Specifications
Hyundai Wia Fanuc i series controller
Ø19.7" (Ø 500mm) Max. turning diameter
28.3" (720 mm) turning length
Ø3.0" (Ø 76mm) Bar capacity
Powerful 30 HP (22 kW) spindle motor
High Torque 545.1 lbf. ft. (739 N.m)
10" chuck
RPM 3,600 spindle
A2-8 spindle nose
2 Step gear box embedded head stock
45° slanted one-piece bed structure
Solid box way construction
787 IPM (20m/min) X, and 945 IPM (24m/min) Z rapid speed
Manual Tool setter
Tool size: 1"/Ø 2" (25mm/Ø50mm)
Programmable tail stock - Tow-along type
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Program and data protection key switch
Chip Conveyor (47" discharge height)
Separate coolant tank
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 19.7 in.
Max Turn Len: 28.3 in.
Chuck Size: 10 in.
Spindle RPM: 3,600
Spindle HP: 30
Spindle Torque: 545.1
Rapids(X): 787
Rapids(Z/B): 945
Travel(X): 11.4
Travel(Z): 29.5
No of Tools: 12
