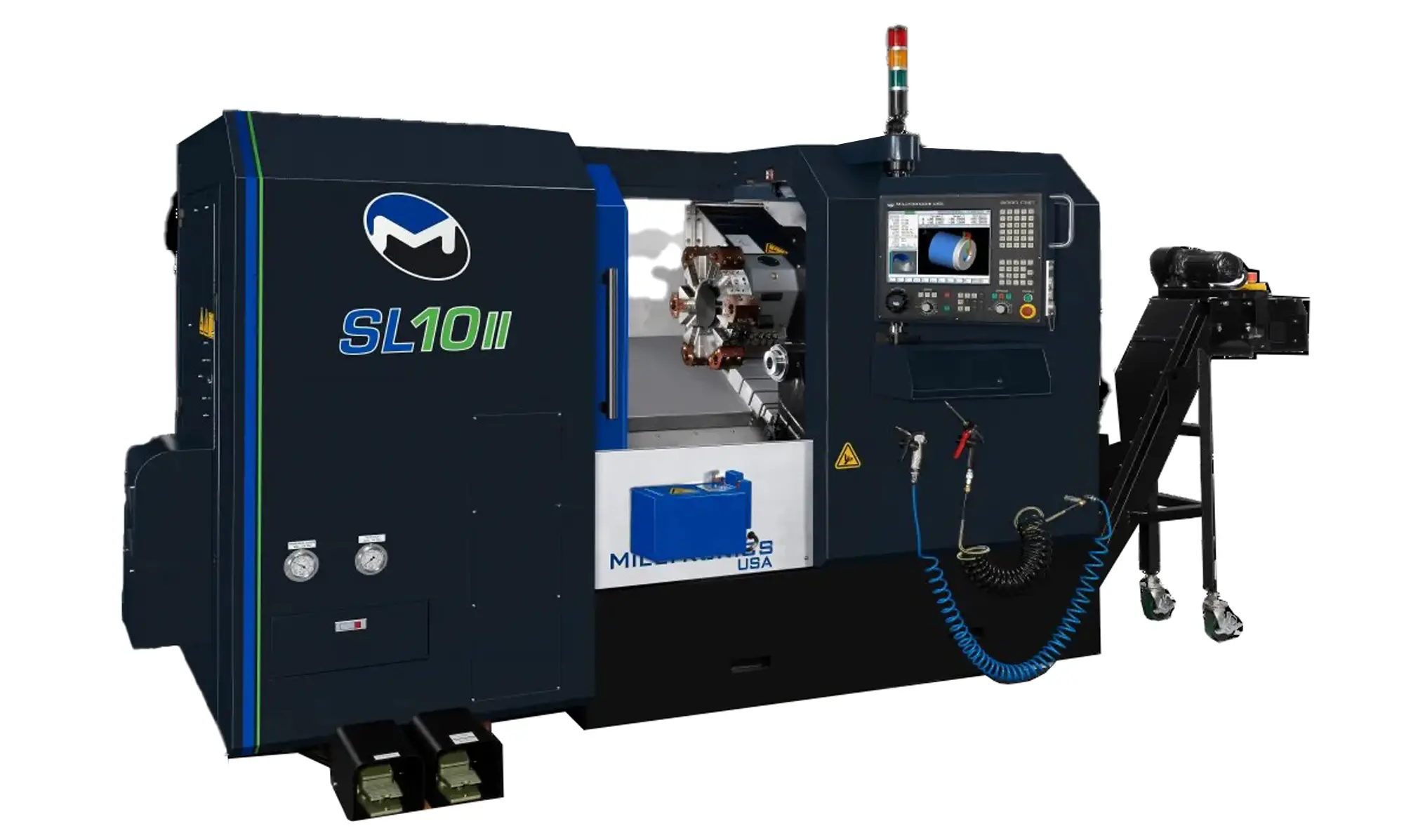

NEW MILLTRONICS SL10-II

OverviewStep up to the SL10-II, featuring a 10" 3-jaw chuck, 3.74" spindle bore and maximum turning length of 29.9". This model has a 30 HP spindle motor and 12 tools in the turret. Options include: chip conveyor, tailstock, parts catcher, and tool presetter.

3-jaw hydraulic chuck with foot switch
12 position auto turret with 1? slots
True slant bed with one-piece base casting
Linear motion guideways with roller type bearings
Full enclosure with sliding door
Flood coolant
Auto lubrication
Part, wire frame & solid model graphics
Constant Surface Speed (CSS)
120 GB solid-state hard drive
15? LCD color touch screen display
Spindle load meter
LCD hour meter
One-year warranty
Parts catcher
Mist collector
Bar feed interface
Bi-directional turning cycle
Automatic tool setter
Hydraulic tailstock
Additional spare "M" functions
Chip conveyor
Oil skimmer
Collet chucks
Digital Setup Assistant
Milltronics Shop View
Weight: 10670 lbs
Dimensions: 110.4 x 191.4 x 88.5 in
X/Z Travels: 9.8/31.1 in
Swing Over Bed: 22.9 in
Swing Over Cross: 15.8 in
Max. Turning Diameter: 17.7 in
Max. Turning Length: 29.9 in
Spindle Nose: A2-8
Draw Tube Diameter: 3.18 in
Spindle Range: 0-3000 RPM
AC Spindle Motor: 29.5/20 HP
Spindle Torque: 260 ft-lbs
Tailstock Quill Travel: 4.7 in
Tailstock Quill Diameter: 3.54 in
Tailstock Quill Taper: MT5
Tool Capacity: 12
Tooling Size: 1 in
Boring Bar Capacity: 1.5 in
Tool Selection: Bi-Directional
Rapid Traverse Rate: 1183 IPM
Positioning Accuracy: (+/- 0.0002 in)
Repeatability: 0.0002 in
Axis Thrust Force: 3125 lb-ft Peak X, 3125 lb-ft Peak Z
Machine Weight: 10670 lbs
Machine Height: 88.5 in
Footprint: 166 x 94.8 in Nominal Operating (W x D)
Power Required: 24 KVA / 59 Amps
Voltage Required: 208-240 Volts / 3 Phase

Max Turn Dia: 22.9 in.
Max Turn Len: 31.1 in.
Chuck Size: 10 in.
Spindle RPM: 3,000
Spindle Taper: A2-8
Spindle HP: 29.5
Spindle Torque: 260 ft-lbs
Rapids(X): 1183
Rapids(Y): 1183
Rapids(Z): 1183
No of Tools: 12
