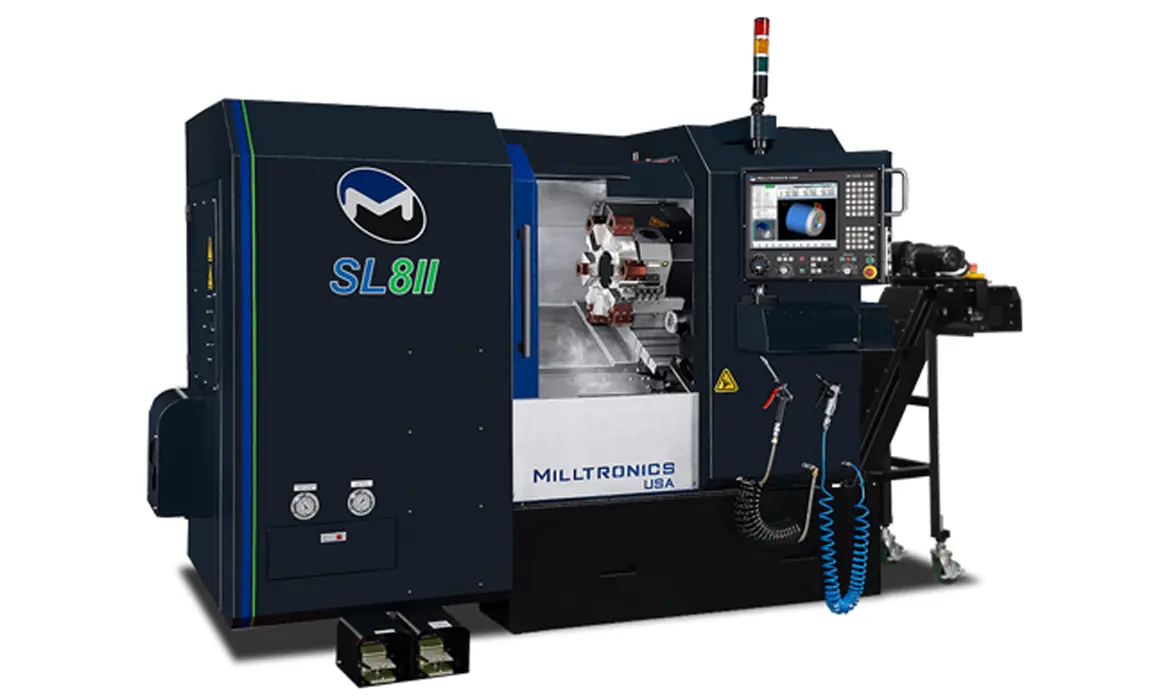

NEW MILLTRONICS SL8-II

OverviewThe SL8-II has an 8" 3-jaw chuck, a maximum turning diameter of 14", maximum turning length of 20.7" and a 3.2" spindle bore. This popular size machine has a 22 HP spindle motor and a 4,000 RPM spindle. Standard with a 12-station auto turret. Options include chip conveyor, tailstock, and tool presetter.

3-jaw hydraulic chuck with foot switch
12 position auto turret with 1? slots
True slant bed with one-piece base casting
Linear motion guideways with roller type bearings
Full enclosure with sliding door
Flood coolant
Auto lubrication
Part, wire frame & solid model graphics
Constant Surface Speed (CSS)
120 GB solid-state hard drive
15? LCD color touch screen display
Spindle load meter
LCD hour meter
One-year warranty
Parts catcher
Mist collector
Bar feed interface
Bi-directional turning cycle
Automatic tool setter
Hydraulic tailstock
Additional spare "M" functions
Chip conveyor
Oil skimmer
Collet chucks
Digital Setup Assistant
Milltronics Shop View
Weight: 8885 lbs
Dimensions: 104.4 x 169.1 x 83.7 in
X/Z Travels: 8/21 in
Swing Over Bed: 21.7 in
Swing Over Cross: 11.8 in
Max. Turning Diameter: 14 in
Max. Turning Length: 21 in
Spindle Nose: A2-6
Draw Tube Diameter: 2.54 in
Spindle Range: 0-4000 RPM
AC Spindle Motor: 30/20 HP
Spindle Torque: 161 ft-lbs
Tailstock Quill Travel: 3.46 in
Tailstock Quill Diameter: 2.28 in
Tailstock Quill Taper: MT4
Tool Capacity: 12
Tooling Size: 1 in
Boring Bar Capacity: 1.5 in
Tool Selection: Bi-Directional
Rapid Traverse Rate: 1182 IPM
Positioning Accuracy: (+/- 0.0002 in)
Repeatability: 0.0002 in
Axis Thrust Force: 1951 lb-ft Peak X, 1951 lb-ft Peak Z
Machine Weight: 8885 lbs
Machine Height: 83.7 in
Footprint: 142.8 x 88.3 in Nominal Operating (W x D)
Power Required: 18 KVA / 44 Amps
Voltage Required: 208-240 Volts / 3 Phase

Max Turn Dia: 21.7 in.
Max Turn Len: 21 in.
Chuck Size: 8 in.
Spindle RPM: 4,000
Spindle Taper: A2-6
Spindle HP: 30
Spindle Torque: 161
Rapids(X): 1182
Rapids(Y): 1182
Rapids(Z): 1182
No of Tools: 12
