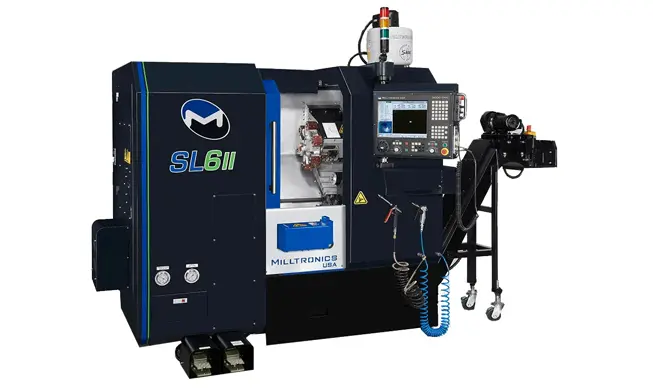

NEW MILLTRONICS SL6-II

OverviewThe SL6-II has a 6" 3-jaw chuck, a maximum turning diameter of 12", maximum turning length of 13". This model has a 17 HP spindle motor and a 6,000 RPM spindle. Standard with a 12-station auto turret.

Chip conveyor
3-jaw hydraulic chuck with foot switch
Bi-directional turning cycle
Tail stock
12 position auto turret with 0.75? slots
True slant bed with one-piece base casting
Linear motion guideways with roller type bearings
Full enclosure with sliding door
Flood coolant
Auto lubrication
Part, wire frame & solid model graphics
Constant Surface Speed (CSS)
120 GB solid-state hard drive
15? LCD color touch screen display
Spindle load meter
LCD hour meter
One-year warranty
Parts catcher
Mist collector
Bar feed interface
Automatic tool setter
Hydraulic tailstock
Additional spare "M" functions
Oil skimmer
Collet chucks
Digital Setup Assistant
Milltronics Shop View
Weight: 7050 lbs
Dimensions: 98.6 x 147.5 x 86.3 in
X/Z Travels: 7/14 in
Swing Over Bed: 15.9 in
Swing Over Cross: 9.45 in
Max. Turning Diameter: 12.4 in
Max. Turning Length: 13.4 in
Spindle Nose: A2-5
Draw Tube Diameter: 1.77 in
Spindle Range: 0-6000 RPM
AC Spindle Motor: 17/10 HP
Spindle Torque: 83 ft-lbs
Tailstock Quill Travel: 3.46 in
Tailstock Quill Diameter: 2.28 in
Tailstock Quill Taper: MT4
Tool Capacity: 12
Tooling Size: .75 in
Boring Bar Capacity: 1.25 in
Tool Selection: Bi-Directional
Rapid Traverse Rate: 1181 IPM
Positioning Accuracy: (+/- 0.0002 in)
Repeatability: 0.0002 in
Axis Thrust Force: 1851 lb-ft Peak X, 1851 lb-ft Peak Z
Machine Weight: 7050 lbs
Machine Height: 86.3 in
Footprint: 126 x 82.2 in Nominal Operating (W x D)
Power Required: 13 KVA / 32 Amps
Voltage Required: 208-240 Volts / 3 Phase

Max Turn Dia: 15.9 in.
Max Turn Len: 14 in.
Chuck Size: 6 in.
Spindle RPM: 6,000
Spindle Taper: A2-5
Spindle HP: 17
Spindle Torque: 83 ft-lbs
Rapids(X): 1181
Rapids(Y): 1181
Rapids(Z): 1181
No of Tools: 12
