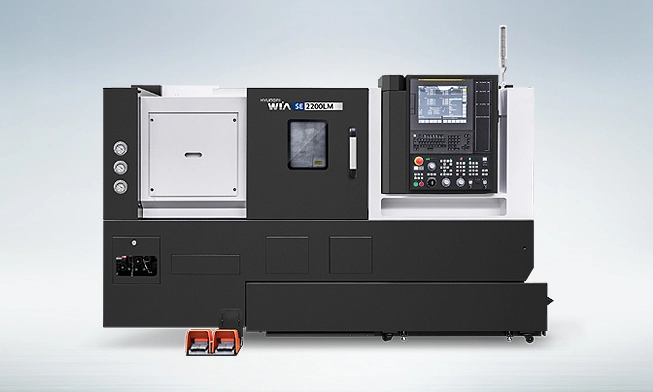

NEW HYUNDAI WIA SE2200L
Overview
Description
OverviewThe CNC Turning Center SE2200L Series, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance and economic efficiency.
Specifications

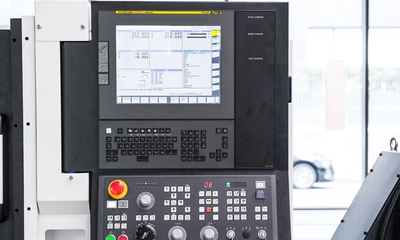

Hyundai Wia Fanuc i series - Smart Plus controller
Fanuc Beta spindle drive and Beta X / Z servo motors
Ø13.8" (Ø350mm) Max. turning Diameter
22.0" (558mm) turning length
Ø2.6" (Ø65mm) Bar capacity
Max. 4,500 RPM Belt driven spindle
20.1 HP (15 kW) spindle motor (S2 15min)
Spindle Torque 124.6 lbf.ft (169 N.m) at 857 rpm

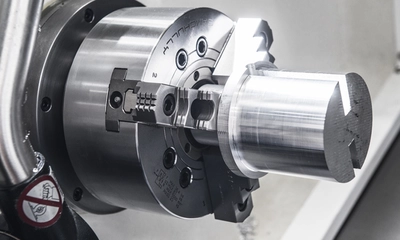

8" 3-jaw chuck
30° slanted one-piece bed structure
Fast 1,181 IPM (30m/min) X and 1,417 IPM (36m/min) Z axis rapid traverse
Manual Tool setter
Tool size: 1" / Ø1.57" (25mm / Ø40mm)
Hydraulic NC tail stock
87 PSI coolant system [290 PSI_Opt.]
Spindle override 0% to 150% (10% Unit)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Auto Parts Catcher
Max Turn Dia: 13.8 in.
Max Turn Len: 22 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 20.1
Spindle Torque: 124.6 lbf.ft
Rapids(X): 1,181
Rapids(Z): 1,417
Travel(X): 8.3
Travel(Z): 22
No of Tools: 12
