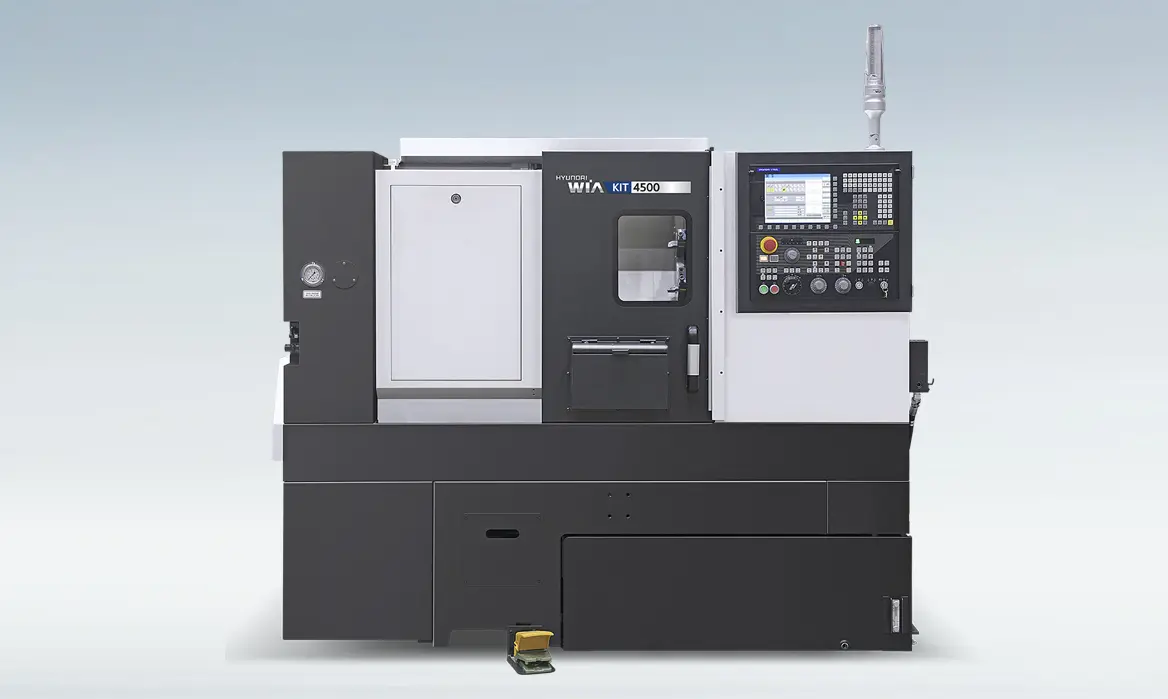

NEW HYUNDAI WIA KIT4500

OverviewThe KIT4500 is designed for high-speed precision turning operation. 60° slant bed ensures excellent chip processing with easy access to the machine. The same thermal expansion angle of the table and spindle will provide excellent thermal displacement. HYUNDAI WIA’s advanced technological features to provide exceptional value.

Hyundai Wia Fanuc i series controller
Ø6.5" (Ø165 mm) Max. turning diameter
11.8" (300 mm) turning length
Ø2" (Ø51 mm) Bar capacity
20 HP (15 kW) spindle motor
Torque 70.5 lbf.ft.
6" 3-jaw chuck
Max 6,000 rpm spindle
20 HP (15 kW) spindle motor
60° slanted one-piece bed structure
1,181 IPM (30m/min) X and 1,417 IPM (36m/mim) Z axis rapid traverse
Tool size: □0.8" / Ø1.2" (□20 / Ø32mm)
87 PSI coolant system
Massive Meehanite cast iron bed
Rigid tapping
Program and data protection key switch
Separate coolant tank
1 color tower signal light
Full enclosure splash guard

Max Turn Dia: 11.8 in.
Max Turn Len: 11.8 in.
Chuck Size: 6 in.
Spindle RPM: 6,000
Spindle HP: 20
Spindle Torque: 70.5
Rapids(X): 1181
Rapids(Z): 1417
Travel(X): 17.7
Travel(Y): 13.4
Travel(Z): 11.8
No of Tools: 6
