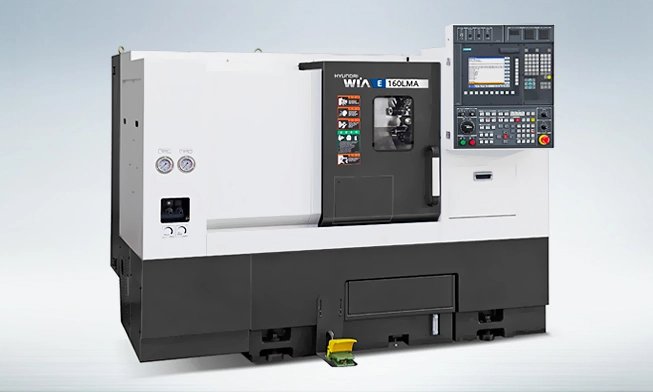

NEW HYUNDAI WIA E160A

OverviewThe E160A features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. HYUNDAI WIA’s advanced technological features to provide exceptional value.

Hyundai Wia Fanuc i series controller
Ø11” (Ø280mm) Max. turning diameter
11.8”(300 mm)/ [20.1”(510mm)] turning length
Ø1.8” (Ø45mm) Bar capacity
Powerful 15 HP (11 kW) spindle motor
Torque 52 lbf. ft. (70N.m)
6” chuck
RPM 6,000 spindle
A2-5 spindle nose
45° slanted one-piece bed structure
1,181 IPM (30m/min) X, and Z rapid speed
Manual Tool setter
Tool size: 0.75”/Ø 1.25”
Manual tail stock
Programmable quill movement Type
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Program and data protection key switch
Chip Conveyor (40” discharge height)
3 color tower signal light
Full enclosure splash guard
Auto Parts Catcher

Max Turn Dia: 11 in.
Max Turn Len: 11.8 in.
Chuck Size: 6 in.
Spindle RPM: 6,000
Spindle HP: 15
Spindle Torque: 51.6
Rapids(X): 1,181
Rapids(Y): 1,181
Rapids(Z): 0
Travel(X): 6.5
Travel(Y): 13
No of Tools: 12
