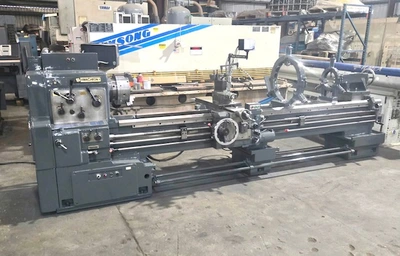

The Whacheon HL-630 Engine Lathe is a robust manual turning machine built for heavy, long-workpiece applications. With a 28.34″ swing, 118″ between centers, and a Sony DRO with rapid traverse, it handles shaft work, repairs, and prototype turning with precision and reliability. New list price from Korea is $85,000 — this is a significant value opportunity.
Available for inspection. Contact us for location and delivery details.
Key Features
Sony 2-Axis DRO with Rapid Traverse
28.34″ Swing / 118″ Between Centers
15 HP Spindle / 27–1,205 RPM (12 ranges)
3.03″ Spindle Bore / A-8″ Spindle Nose
40-step feed selection
Non-gap bed construction
Machine Type: Engine Lathe
Manufacturer: Whacheon
Model: HL-630
Control: 2-Axis Sony DRO with Rapid Traverse
Swing Over Bed: 28.34″
Swing Over Cross Slide: 18.50″
Swing Over Gap: Non-Gap
Distance Between Centers: 118.11″
Spindle Nose: A-8″
Spindle Bore: 3.03″
Taper of Spindle Bore: MT No. 7
Taper of Center: MT No. 5
Spindle Speeds: 27–1,205 RPM (12 ranges)
No. of Feed Changes: 40 Step
Longitudinal Feed (Z): 0.0015″–0.0216″ IPR
Cross Feed (X): 0.0016″–0.0228″ IPR
Cross Slide Travel: 13.35″
Compound Rest Travel: 6.69″
Bite Holder Size: 1.25″ x 1.25″
Lead Screw: 1.57″ Dia. x 0.47″ Pitch
Spindle Motor: 15 HP
Max RPM: 1,205 RPM
Condition: Used
