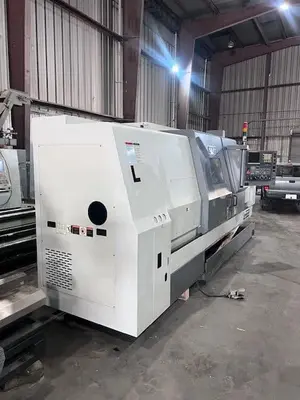

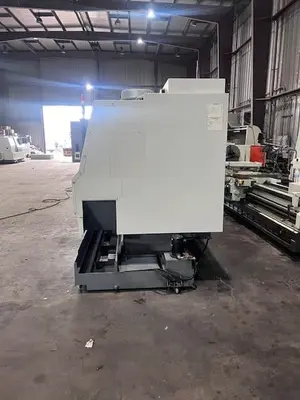

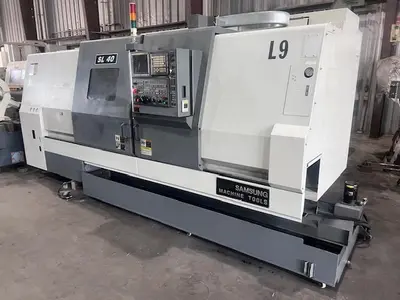

USED SAMSUNG / SMEC SL-40/1500

The Samsung SL-40/1500 CNC Turning Center is a heavy-duty, box-way lathe engineered for large-diameter turning applications. With an 18″ hydraulic chuck, 60.2″ center distance, and a powerful 30 HP spindle, it delivers the rigidity and torque needed for demanding production environments. Controlled by a Fanuc 0i-TD and equipped with a programmable hydraulic tailstock, this machine is ready to work.
Installed in 2014 and currently under power in Houston — available for inspection.
Key Features
Fanuc 0i-TD CNC Control
18″ Hydraulic 3-Jaw Chuck
26.8″ Swing / 60.2″ Center Distance

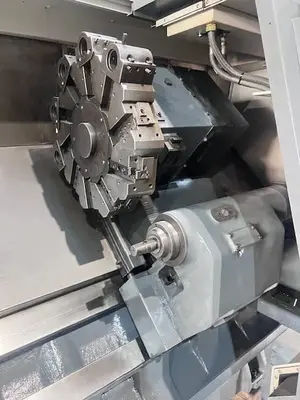

Programmable Hydraulic Tailstock (body & quill)
2-Speed Geared Spindle
Box Way Construction
Standard Mori Seiki-compatible tooling package
Chip conveyor, coolant tank, tool presetter

Machine Type: CNC Turning Center
Manufacturer: Samsung / SMEC
Model: SL-40/1500

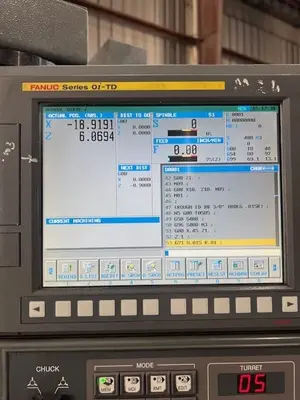

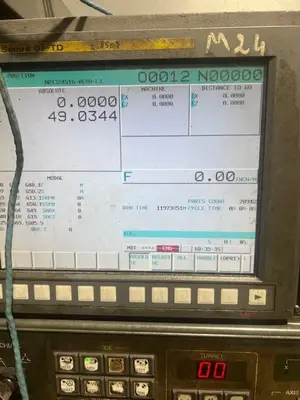

CNC Control: Fanuc 0i-TD
Year Installed: 2014
Swing: 26.8″
Turning Diameter: 19.7″
Center Distance: 60.2″
Chuck Size: 18″
Bar Capacity: 4.6″ Through Chuck / 5.2″ Through Spindle
X Axis Travel: 11″
Z Axis Travel: 63.19″
Rapid Traverse X/Z: 472 / 591 IPM
Spindle Nose: A2-11
Spindle Speed: 0–1,800 RPM
Spindle Motor: 30 HP
Machine Dimensions: 197″ x 75″
Machine Weight: 20,500 lbs
Hydraulic Chuck: 18″ 3-Jaw
Tailstock: Programmable Hydraulic
Spindle: 2-Speed Geared
Construction: Box Way
Tooling: Standard package installed (accepts Mori Seiki tooling)

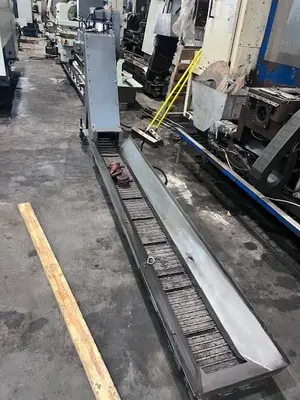

Chip Conveyor: Yes
Coolant Tank: Yes
Tool Presetter: Yes
Condition: Used — Under Power in Houston
