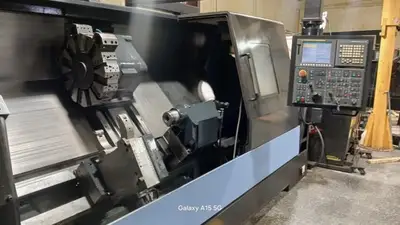

USED 2012 DOOSAN PUMA 400LC

The 2012 Doosan Puma 400LC CNC Turning Center is a heavy-duty production lathe designed for large workpieces requiring consistent accuracy and high material removal rates. With a 23.2″ maximum turning diameter, 81.7″ turning length, and a powerful 50 HP spindle motor, this machine is built for steel service centers, heavy fabrication shops, and oil & gas machining environments.
The Puma 400LC features a 6.5″ bar capacity, 12-position turret, and rapid traverse rates of 630 IPM (X) and 790 IPM (Z) for fast, efficient cycle times. The machine includes a full hydraulic SMW Auto-Blok steady rest, chip conveyor, tailstock, and tool setter. Approximately 7,000 hours and reported in excellent condition.
Key Features
23.2″ maximum turning diameter
81.7″ turning length
50 HP spindle motor / 1,500 RPM max spindle speed
6.5″ bar capacity through A2-15″ spindle nose
7.1″ spindle bore
12-position turret
Rapid traverse: 630 IPM (X) / 790 IPM (Z)
Hydraulic chuck: 21″
Full hydraulic SMW Auto-Blok steady rest
Chip conveyor, tailstock, and tool setter included
Approx. 7,000 hours — excellent condition

Machine Type: CNC Turning Center
Manufacturer: Doosan
Model: Puma 400LC
Year: 2012
Hours: Approx. 7,000
Maximum Swing: 30.3″
Maximum Turning Diameter: 23.2″
Maximum Turning Length: 81.7″
Bar Capacity: 6.5″
X Axis Travel: 14.2″
Z Axis Travel: 84.8″
Spindle Motor: 50 HP
Spindle Speed: 1,500 RPM
Spindle Nose: A2-15″
Spindle Bore: 7.1″
Turret Positions: 12
Rapid Traverse X: 630 IPM
Rapid Traverse Z: 790 IPM
Tailstock Quill: 4.7″ / MT #5
Hydraulic Chuck: 21″
Steady Rest: SMW Auto-Blok Full Hydraulic
Chip Conveyor: Yes
Tool Setter: Yes
Tailstock: Yes
Condition: Excellent
Approx. Shipping Weight: 25,500 lbs
Approx. Shipping Dimensions: 210″ L x 94″ W x 89″ H
