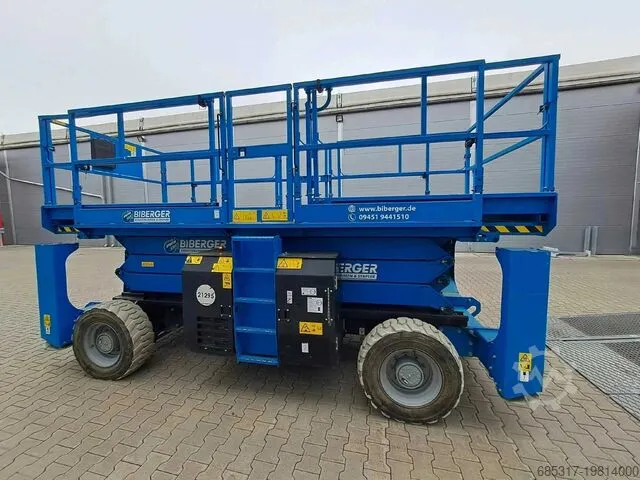

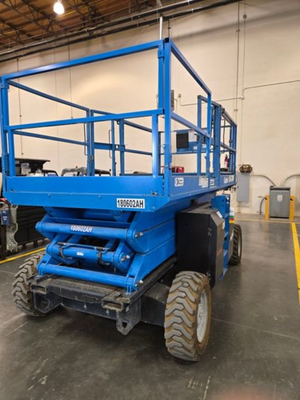

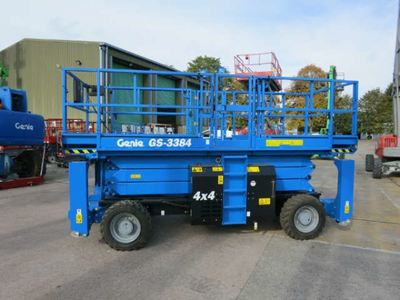

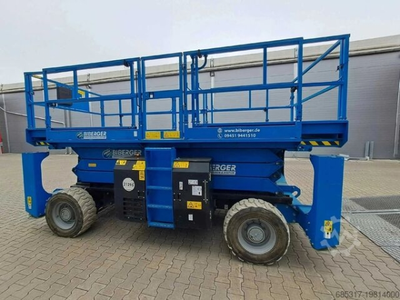

USED 2016 Genie GS-3384 RT
Overview
Description
Working Height: 39 ft Platform Height: 33 ft Platform Size (Stowed): 12 ft 11.25 in x 6 ft Platform Size (Extended Dual Deck): 21 ft 6.5 in x 6 ft Lift Capacity: 2,500 lbs Extension Deck Capacity: 500 lbs Gradeability: 50% Drive Speed (Stowed): 5.0 mph Drive Speed (Raised): 0.7 mph Turning Radius (Inside/Outside): 10 ft 1.5 in / 19 ft 6 in Weight: 11,825 lbs (13,500 lbs with outriggers) Power Options: 48.7 hp Deutz D2.9L diesel engine (Tier 4f) 60 hp Ford 2.5L gas/LPG engine Fuel Tank Capacity: 20 gal Hydraulic Tank Capacity: 30 gal Tires: Foam-filled rough terrain, 10 x 31 in ⚙️ Notable Features Four-wheel drive with positive traction control Dual slide-out platform extensions (5 ft front, 4 ft rear) Automatic leveling hydraulic outriggers (optional) Folding guardrails with full-height swing gates AC power to platform and optional 2kW generator Onboard diagnostics and proportional lift/drive controls Tilt and motion alarms, descent alarm, and dual flashing beacons 📏 Dimensions Stowed Height (Rails Up): 8 ft 9.5 in Stowed Height (Rails Lowered): 6 ft 6.75 in Stowed Length (Single Deck): 12 ft 11.25 in Stowed Length (Dual Deck): 13 ft 0.5 in Length with Outriggers: 16 ft Width (Standard Tires): 7 ft Wheelbase: 9 ft 4 in Ground Clearance: 13 in
Specifications
| Weight | 13500.0 | 13500.0 |
|---|
Status: Available
Weight: 13500.0
Rental Rate: $2115
Rate Schedule: DAY: $317
Rate Schedule: WEEK: $705
Rate Schedule: 3 MOS: $6345
Rate Schedule: 6 MOS: $12690
