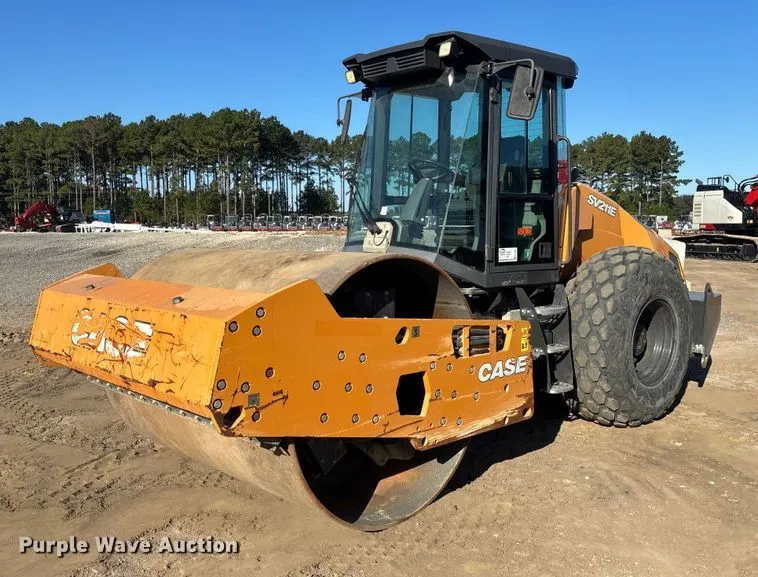

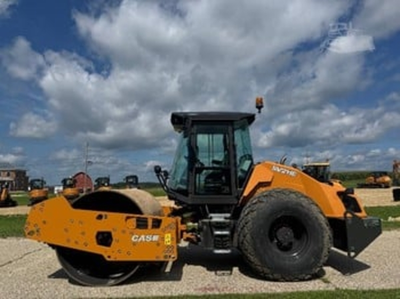

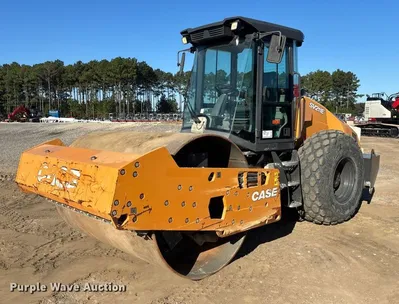

OROPS (Open Cab) 84" Smooth Drum Roller | Deutz TCD3.6 L4 Tier 4 Final, 134 Hp @ 2,200 Rpm, Max Torque 368.8 Lb-Ft @ 1,600 Rpm, Smooth Drum Operating Weight 25,630 Lb (W/O Cab) Up To 29,610 Lb (W/ Cab), Padfoot Operating Weight 26,860 Lb Up To 27,650 Lb, Drum Width 83.9 In, Drum Diameter 59.1 In Smooth / 58.7 In Padfoot, Drum Shell Thickness 1.0 In, Overall Length 232.3 In, Overall Width 89.0 In, Overall Height 116.9 In, Wheelbase 117.7 In, Ground Clearance 16.9 In, Dual Frequency 1,860 Vpm (31 Hz) Low / 2,100 Vpm (35 Hz) High, Amplitude 0.033 In Low / 0.077 In High, Centrifugal Force 34,845 Lbf Low / 64,070 Lbf High, Hydrostatic Drive Drum And Wheels, Working Speeds 1.6 / 2.3 / 3.1 / 4.7 Mph, Max Travel 7.5 Mph, Gradeability 54% Standard / 67% With HX Drive Traction Assist, Fuel 91.1 Gal, DEF 5.8 Gal, Hydraulic System 20.1 Gal, Engine Oil 2.6 Gal, Engine Coolant 8.6 Gal, Transmission 0.4 Gal, Drive Axle 0.4 Gal, Vibration System 1.9 Qt, Articulation 36° Left/Right, Oscillation 10°, Inside Turning Radius 142.9 In, Outside Turning Radius 250.6 In.
| Weight | 25630.0 | 25630.0 |
Status: Available
Hours: 1450 hrs
Weight: 25630.0
Rental Rate: $7300
Rate Schedule: DAY: $1095
Rate Schedule: WEEK: $2433
Rate Schedule: 3 MOS: $21900
Rate Schedule: 6 MOS: $43800
