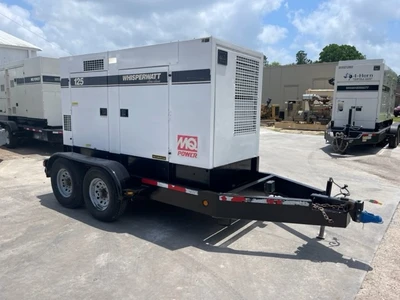

2012 Multiquip DCA-125USI 100kW Towable Generator (125kVA Genset), Single Phase And 3 Phase | Generator Output
Prime output: 100 kW (125 kVA) at 0.8 power factor
Standby output: 110 kW (137.5 kVA)
Frequency: 60 Hz
Speed: 1800 RPM
Phase: 3-phase standard (switchable to single-phase)
Engine
Model: Isuzu 4HK1X (Tier 3)
Type: 4-cylinder, turbocharged, direct-injection, air-to-air intercooled
Rated power: 152 hp at 1800 RPM
Emissions: Tier 3 compliant
Fuel System
Fuel type: Diesel
Fuel tank capacity: 169 gallons
Runtime: Approx. 23 hours at full load, 42 hours at half load
Alternator & Voltage Control
Brushless, open-delta design
Automatic voltage regulator: ±0.5% regulation
Electronic governor: ±0.25% frequency stability
Voltage Options
3-phase: 208Y/120, 220Y/127, 240Y/139, 416Y/240, 440Y/254, 480Y/277
Single-phase: 240/120 selectable
Main breaker: 350 amps
Twist-lock outlets: Three 50 amp
Duplex outlets: Two 20 amp GFCI
Control Panel
Digital engine monitoring: Oil pressure, coolant temperature, battery voltage, RPM, load, fuel level
Analog generator gauges: Voltmeter, ammeter, frequency meter, phase selector switches
Safety shutdowns: Low oil pressure, high coolant temp, over-speed, over-crank, low DEF
Noise Level
Sound level: 65 dB(A) at 23 feet
Enclosure: Ultra-silent, sound-attenuated steel housing
Dimensions & Weight
Dry weight (no fuel): 5,689 lb
Operating weight (with fuel): 7,012 lb
Trailer-mounted dimensions (with TRLR150US):
Length: 184 inches
Width: 83 inches
Height: 124 inches
| Weight | 5689.0 | 5689.0 |
Status: Available
Hours: 8215
Weight: 5689.0
Rental Rate: $2500
Rate Schedule: DAY: $375
Rate Schedule: WEEK: $833
Rate Schedule: 3 MOS: $7500
Rate Schedule: 6 MOS: $15000
