| X | 32.1" | 815.34 mm |
| Y | 29.3" | 744.22 mm |
| Z | 19.7" | 500.38 mm |
| # Axis | 5 | 5 |
| Power | 18 hp | 13.4 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 50 | 50 |
| Taper | BT-40 | BT-40 |

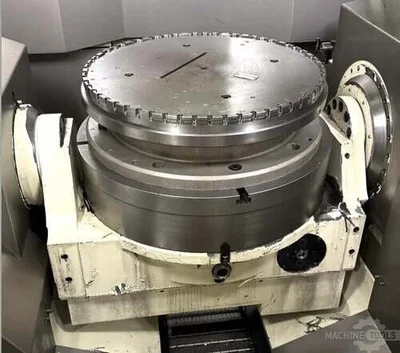

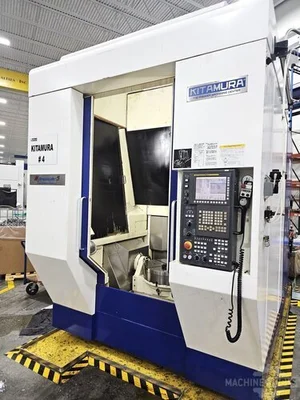

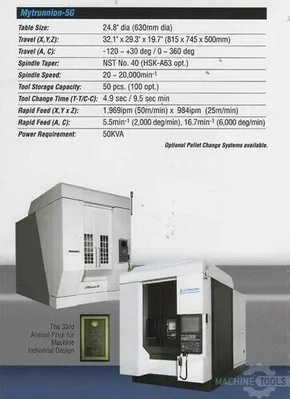

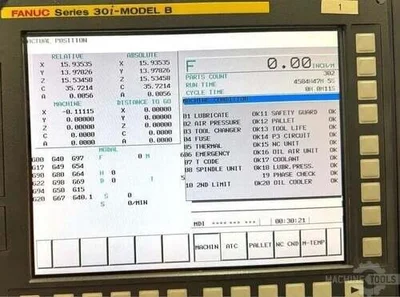

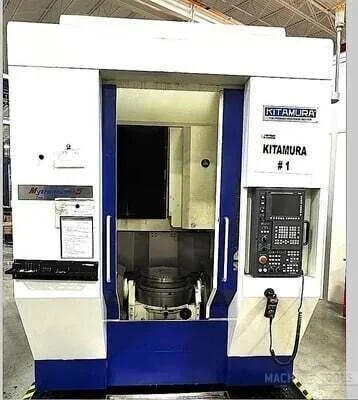

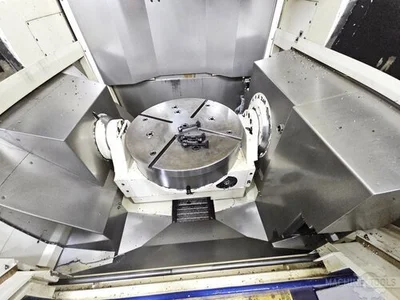

32” X 29.3” X 19.7” Vertical Machining Center with Fanuc 30i-MB Control, 24.8” Round Table, 50 Position ATC, Simultaneous 5 - Axis Cutting, Coolant Through Spindle, Opening for another 50 Tool Carousel, Glass Scales on Axes, PCMCIA Card Slot, 128 MB Card Slot, Spindle Chiller, Spindle Orientation, Helical Interpolation, Rigid Tapping, Absolute Incremental Programming, Fast Rapid Traverse Rate, Flood Coolant with Separate Coolant Tank, Rear Discharge Chip Conveyor and Work Light.GENERAL SPECIFICATIONS Table Size (Round): 24.8”Travel (X, Y, Z): 32” X 29.3” X 19.7”Travel (A, C): -120 to + 30° / 0 to 360°Spindle Taper: CAT 40Spindle Speed: 20 - 20,000 RPMTool Storage Capacity: 50 + Opening for Additional 50Tool Change Time (T-T / C-C): 2.5 Sec / 5.0 SecRapid Feed (A, C): 2,000° /Min, 6,000° / MinPower Requirement: 45KVAElectrical: 208 / 220V, 3 Ph, 60HzMax X - Axis Feed: 1968” / MinMax Y - Axis Feed: 1968” / MinMax Z - Axis Feed: 984” / MinA - Axis (Table Tilt): 150°C - Axis (Table Rotate): 360°Max Tool Size: 5.91” X 11.8”Max Tool Weight: 22 LbsINCLUDES: Fanuc 30i-MB Control, 24.8” Round Table, 50 Position ATC, Simultaneous 5 - Axis Cutting, Coolant Through Spindle, Opening for another 50 Tool Carousel, Glass Scales on Axes, PCMCIA Card Slot, 128 MB Card Slot, Spindle Chiller, Spindle Orientation, Helical Interpolation, Rigid Tapping, Absolute Incremental Programming, Fast Rapid Traverse Rate, Flood Coolant with Separate Coolant Tank, Rear Discharge Chip Conveyor and Work Light.
