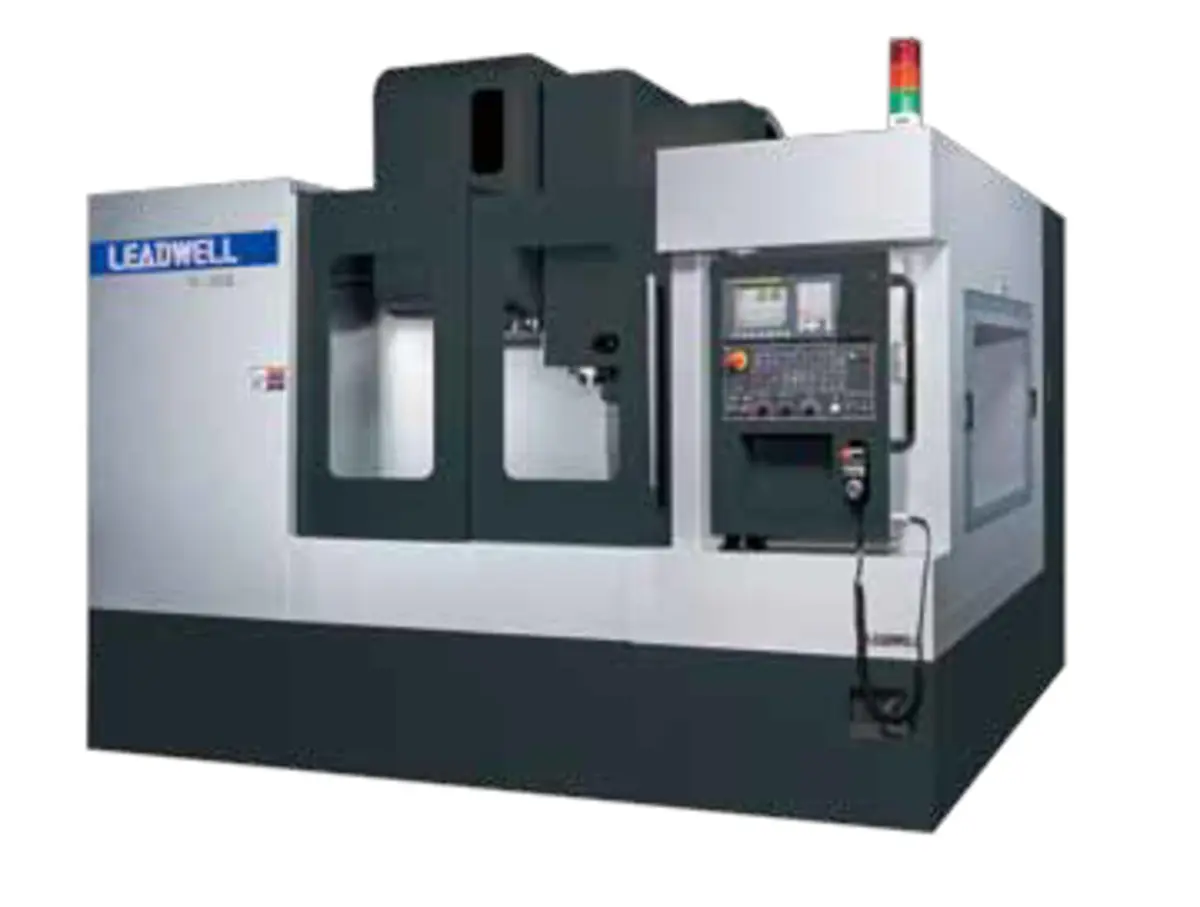

MAXCUT/LEADWELL V50L

FEATURES
Fagor 8055Power MC CNC Controller with 11” Color display
1417IPM rapid travel speed 20 bar
Coolant through spindle
Programmable spindle side air blow
Spindle air purge w/ valve
Coolant ring - a unique spindle annular coolant jet
Chain-type Chip Conveyer combined with chip-Augur
Roller Linear Guide Ways

[SPECIFICATIONS]
ITEM: V50L
TABLE UNIT
Table size: 1 420 x 6 10 (56 x 24) Mm (in)
T-slots width x dist. x number: 18 x 100 x 6 (0.71 x 3.94 x 6) Mm (in)
Table loading capacity: 1000 (2200) Kgs (Lbs)
TRAVEL
X travel: 1270 (50.0) Mm (in)
Y travel: 635 (25.0) Mm (in)
Z travel: 610 (24.0) Mm (in)
SPINDLE
Taper: 40 BT/CT
Spindle speed: 8000 RPM
Spindle center to column: 635 (25) Mm (in)
Spindle nose to table: 100-710 (4 .0 – 28) Mm (in)
MOTOR
Spindle: 1 5/ 22( 30m in) (2 0/ 30( 30m in)) Kw (Hp)
X axis: 18 (13.2) Nm (Ft-Lb)
Y axis: 18 (13.2) Nm (Ft-Lb)
Z axis: 18 (13.2) Nm (Ft-Lb)
Coolant pump: 200 (1/4) W (HP)
SWING ARM STYLE ATC
Number of tools: 2 4/ 3 0 option
Tool taper: 40 BT/ CT
Tool Select by: shortest path
Max. tool weight: 8 (17.6) Kgs (Lbs)
Max. tool diameter (full tool): 80 (3.15) Mm (in)
Max. tool diameter: 125 (5.0) Mm (in)
Max. Tool Length: 250 (10) Mm (in)
PERFOMANCE
Rapid traverse X/Y/Z: 36 (1417) M/min (Ipm)
Feed Rate X/Y/Z: 12 (500) M/min (Ipm)
Positioning accuracy: 0.005 (0.0002) Mm (in)
Repeatability: 0.005 (0.0002) Mm (in)
DIMENTIONS
Length x Width x Height: 1 51 x 9 2 x1 0 8 INCH
Weight: 8800 (19360) KGS (LBS)
[Standard Equipment]
8000rpm spindle speed as standard, 10000/12000RPM as optional ( V50L)
12,000RPM spindle speed with 2 speed gear box (V60S)
ISO40 spindle: Telescopic way covers
Heater exchanger for electric cabinet: Portable MPG
Heavily ribbed cast iron components: Rigid tapping
Coolant system with checked valve: 1417IPM rapid travel speed
One piece Box type base with internal rib design: Precision ground ball screw
Full enclosure & heavy duty metal guarding: Wash down system
Spindle head thermal stability enhancements with oil cooler
Large fully ground work table with 5 T slots
Automatic lubrication with low lubrication fault
Precision ground, premium Quality, preloaded double-nut ball screws
EMC (electromagnetic compatibility) to avoid electric noise
Removable side doors for handling large profile machining parts
Automatic tool changer -24 Tools, Swing arm type
Roller Linear guide ways ensure higher rigidity for high speed, high accuracy and heavy duty load
[Control features]
Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically
Conversational to G-code programming conversion feature allows operator to program the job without G code
Inside/outside taper threading/Boring cycle
Quick programming helical taper interpolation or helical taper threading
