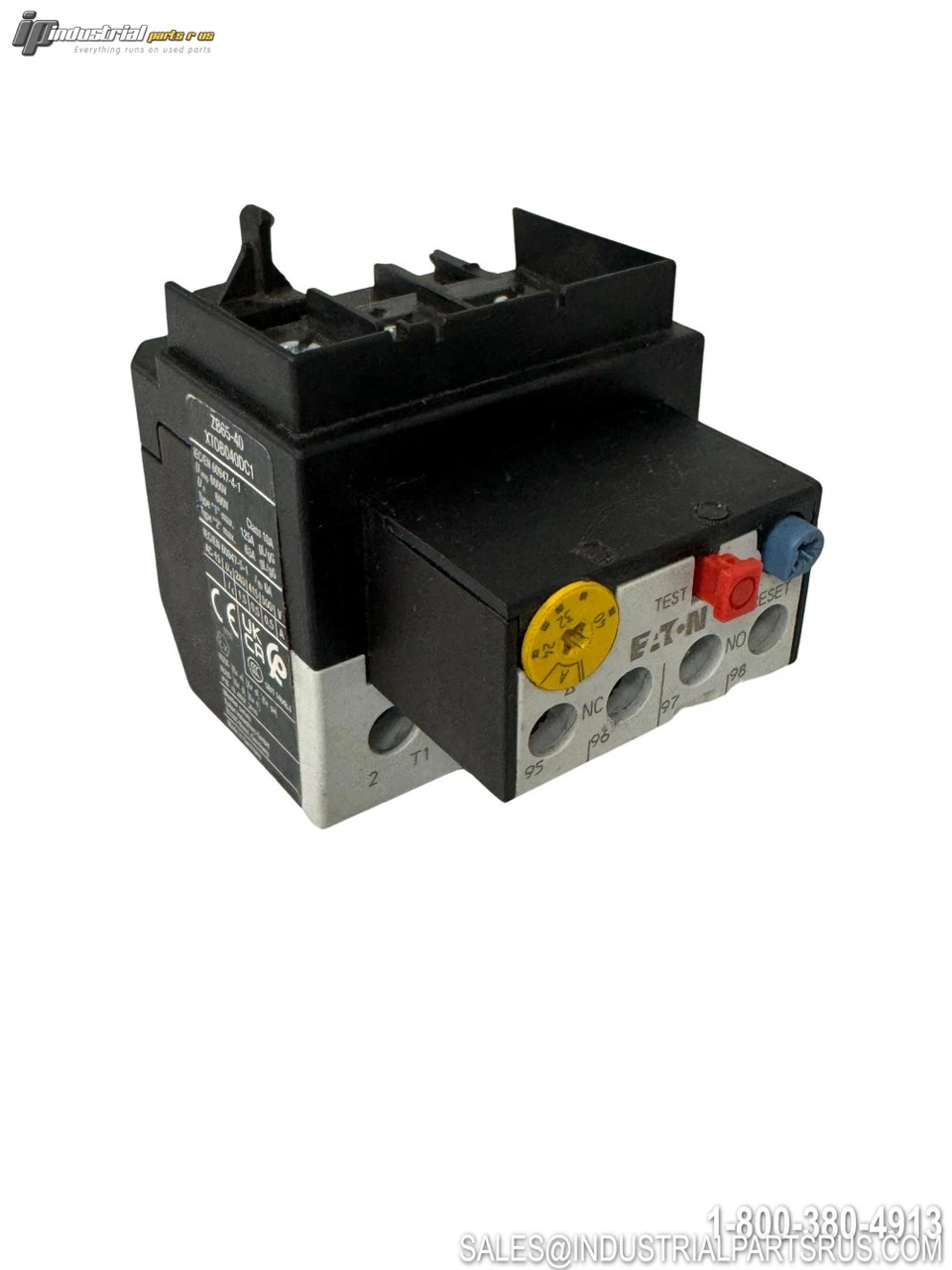

USED EATON ZB65-40 XT0B040DC1

The Eaton ZB65-40 XT0B040DC1 is an IEC-rated thermal overload relay designed for the protection of three-phase motors. This bimetallic overload relay provides reliable protection against overload, phase asymmetry, and phase failure conditions. It features adjustable current range settings and direct mounting to compatible contactors for efficient motor protection solutions.
Specification
Value
Brand
Eaton
Model/Part Number
ZB65-40 XT0B040DC1
Type
Thermal Overload Relay
Current Range
24-40A
Frame Size
55mm (Frame D)
Trip Class
Class 10A
Contact Configuration
1NO + 1NC
Mounting Type
Direct to Contactor
Compatible Contactor Range
40-72A
Voltage Rating
600VAC
Power Consumption
7.5W
Ambient Temperature Range
-25°C to 55°C (-13°F to 131°F)
Reset Type
Manual/Automatic Selectable
Product Dimensions
3"L x 2"H x 4"W
Weight
0.4 lb
Standards Compliance
IEC 60947, UL Listed, CSA Certified
We warranty all items for 30 days from date of purchase.

SKU: AI1281
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Eaton
Part Number: ZB65-40 XT0B040DC1
Shelf: K-4
Model: ZB65-40 XT0B040DC1
MPN: ZB65-40 XT0B040DC1
Type: Overload Relay
