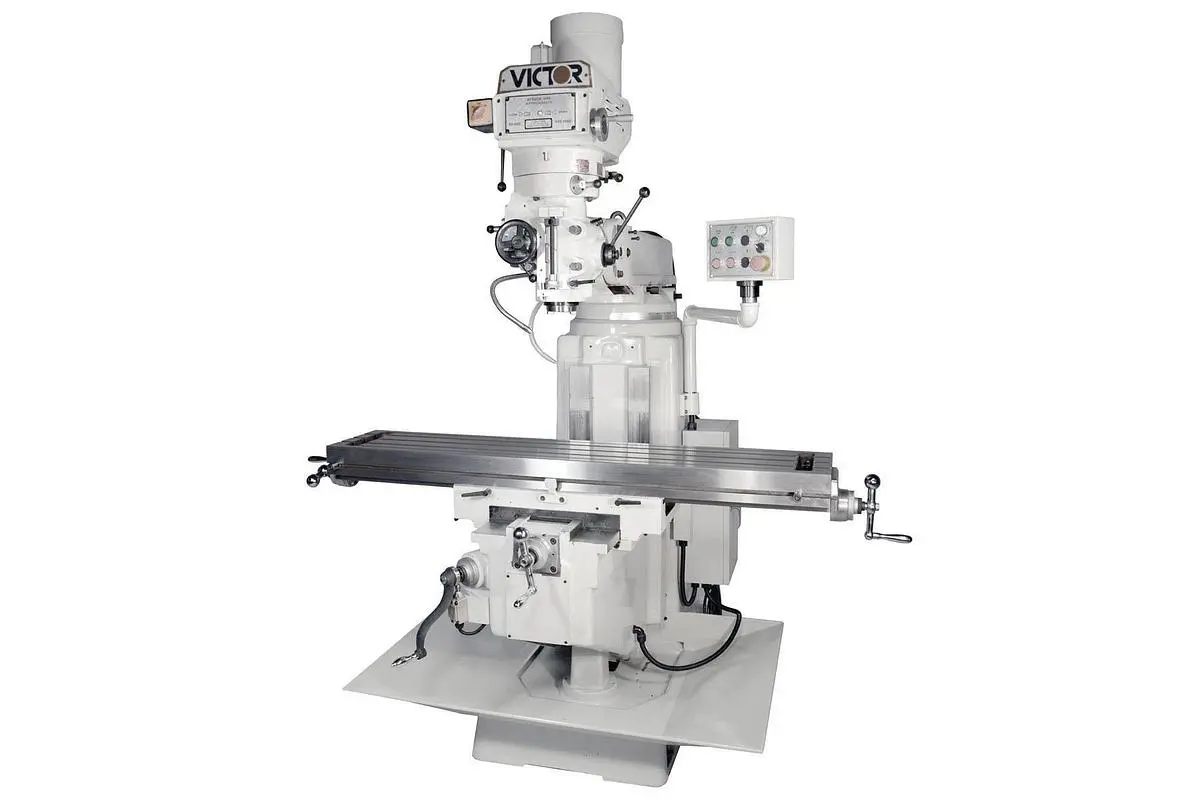

NEW VICTOR MACHINES JF-5VSL

Victor JF-5VSL variable speed vertical knee mill comes with a rigid one-piece bed and a special double wall designed box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.
FEATURES:
Table elevating motor
Coolant system
Auto lubrication system
Meehanite casting
Hardened and ground table and slideways
Rigid one-piece bed and a special double wall designed box structure column casting
Square slideways
Turcite-B on X & Y-axis slideways
Double saddle locks
Precision hand scraped
High precision chromed quill
NMTB #40 spindle taper
6" spindle quill travel

STANDARD ACCESSORIES:
Table elevating motor
Coolant system with chip pan
Auto lubrication system
Control panel
Draw bar
Front rubber way cover
Rear rubber way cover
Tool box with tools

STANDARD ACCESSORIES:
Table elevating motor
Coolant system with chip pan
Auto lubrication system
Control panel
Draw bar
Front rubber way cover
Rear rubber way cover
Tool box with tools

STANDARD ACCESSORIES:
Table elevating motor
Coolant system with chip pan
Auto lubrication system
Control panel
Draw bar
Front rubber way cover
Rear rubber way cover
Tool box with tools

STANDARD ACCESSORIES:
Table elevating motor
Coolant system with chip pan
Auto lubrication system
Control panel
Draw bar
Front rubber way cover
Rear rubber way cover
Tool box with tools

STANDARD ACCESSORIES:
Table elevating motor
Coolant system with chip pan
Auto lubrication system
Control panel
Draw bar
Front rubber way cover
Rear rubber way cover
Tool box with tools

Type: Variable Speed Mill
Table size: 11.81" x 59"
Longitudinal travel (X-axis): 40" (no powerfeed) 36" (with powerfeed)
Cross travel (Y-axis): 16.2"
Vertical travel of knee: 18.1"
Distance from spindle nose to table: 18.5"
Slide ways: Square
Spindle motor: 5 HP 3 Phase
Spindle taper: NMTB 40
Spindle speeds: 60 ~ 3,600 rpm
Quill travel: 6"
Quill feeds: 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm)
Quill diameter: 4.13"
Swiveling angle of head: 90°
Head inward & outward: 45°
Overall height: 105"
Overall depth: 77.18"
Overall width: 108"
Packing Dimensions (LxWxH): 90" x 63" x 81"
Approx. Net weight: 3,900 lb.
