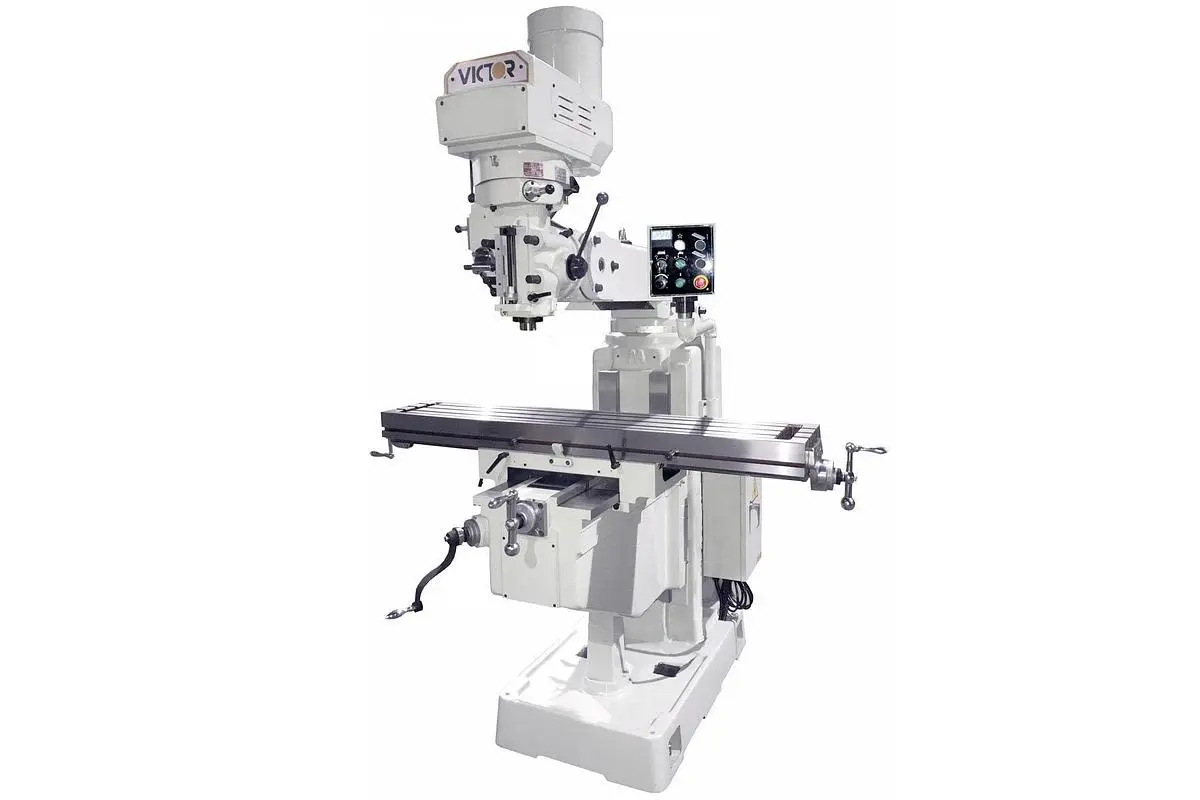

Victor JF-4EVS electronic variable speed vertical knee mill is driven by 3 HP frequency inverter drive comes with rigid one-piece bed and a special double wall designed box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.
FEATURES:
Meehanite casting
Hardened and ground table and slideways
Rigid one-piece bed and a special double wall designed box structure column casting
Square slideways
Turcite-B on X & Y-axis slideways
Double saddle locks
Precision hand scraped
High precision chromed quill
Built-in one shot lube system
3 HP frequency inverter drive motor
STANDARD ACCESSORIES:
Variable frequency drive
Draw bar
Front rubber way cover
Rear rubber way cover
One-shot lube system
Tool box with tools
STANDARD ACCESSORIES:
Variable frequency drive
Draw bar
Front rubber way cover
Rear rubber way cover
One-shot lube system
Tool box with tools
STANDARD ACCESSORIES:
Variable frequency drive
Draw bar
Front rubber way cover
Rear rubber way cover
One-shot lube system
Tool box with tools
Type: Electronic Variable Speed Mill
Table size: 10" x 54"
Longitudinal travel (X-axis): 40" (no powerfeed) 36" (with powerfeed)
Cross travel (Y-axis): 16"
Vertical travel of knee: 16"
Distance from spindle nose to table: 16.88"
Slide ways: Square
Spindle motor: 3 HP 3 Ph. (single phase optional)
Spindle taper: R8
Spindle speeds: 60 ~ 4,200 rpm (inverter drive electronic variable speed)
Quill travel: 5"
Quill feeds: 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm)
Quill diameter: 3-3/8"
Swiveling angle of head: 90°
Head inward & outward: 45°
Overall height: 84"
Overall depth: 77.18"
Overall width: 105"
Packing Dimensions (LxWxH): 70" x 62" x 76"
Approx. Net weight: 3,450 lb.
