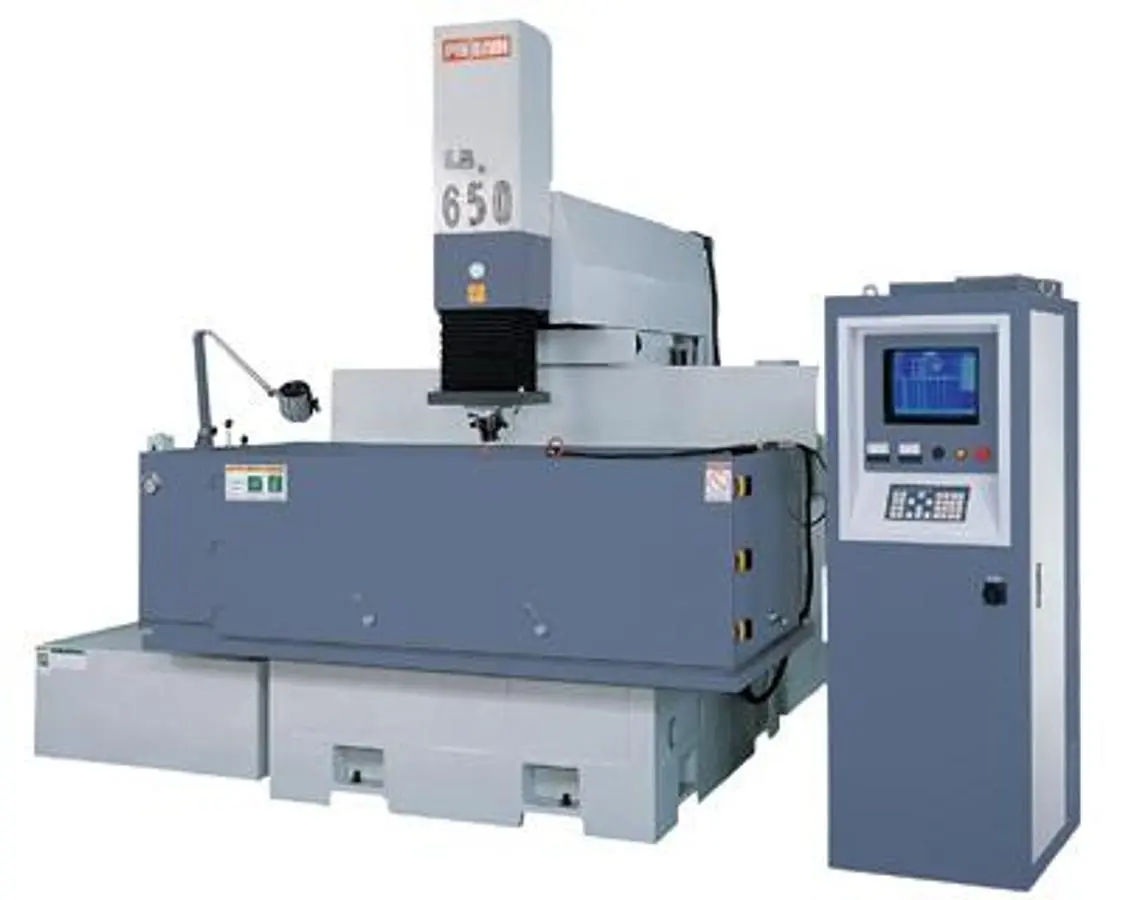

NEW TOP PHOENIX ZNC 30A 50A 75A 100A
Specs
Work tank (W x D x H) inner size: mm/inch 2,150x1,150x700(84.7x45.3x27.6)
Work table size (X x Y): mm/inch 1,400x900(55.1x35.4)
Work table travel (X x Y): mm/inch 1,200x700(47.3x27.6)
Ram servo travel (Z-axis): mm/inch 450(17.7)
Min. & max. distance between end of electrode holder and table surface: mm/inch 560-1,100(22.1-39.8) END ELECTRODE PLANE TO TABLE SURFACE DISTANCE
Max. electrode weight: kgs/lbs 400(880)
Max. workpiece weight: kgs/lbs 4,000(8,800)
External dimension (W x D x H): mm/inch 2,400x1,100x470x1PC(94.5x43.3x18.5) 2,600x1,100x470x1PC(102.4x51.2x18.5)
Packing dimension (W x D x H): mm/inch 2,700x1,250x1,660(106.3x49.2x65.4)
Net weight: kgs(lbs) 200(440)
Capacity: LITERS 2,000
Filter paper/pump: PCS 6/2PC
Control axes & method: Z-AXIS, DC SERVO, NC CLOSE LOOP.
Least input increment: 0.005mm / 0.001mm(OPTIONAL)
Max. input increment: ±9999.995mm / 9999.999mm
Coordinates system: INC/ABS
Display system: 15" LCD-TFT
Program data capacity: 100 FILES.
Nominal current: A 30 50 75 100
Total power input: KVA 3 4.5 6 10
Max. material removal rate: mm3/min 180 360 560 700
Electrode wearing rate: % < 0.3
Best surface roughness: Min.Ra 0.27 µ mRa
External dimension: mm( inch) 600x700x1,750(23.6x27.6x68.9)
Packing dimension: mm(inch) 750x850x1,930(29.5x33.5x76)
