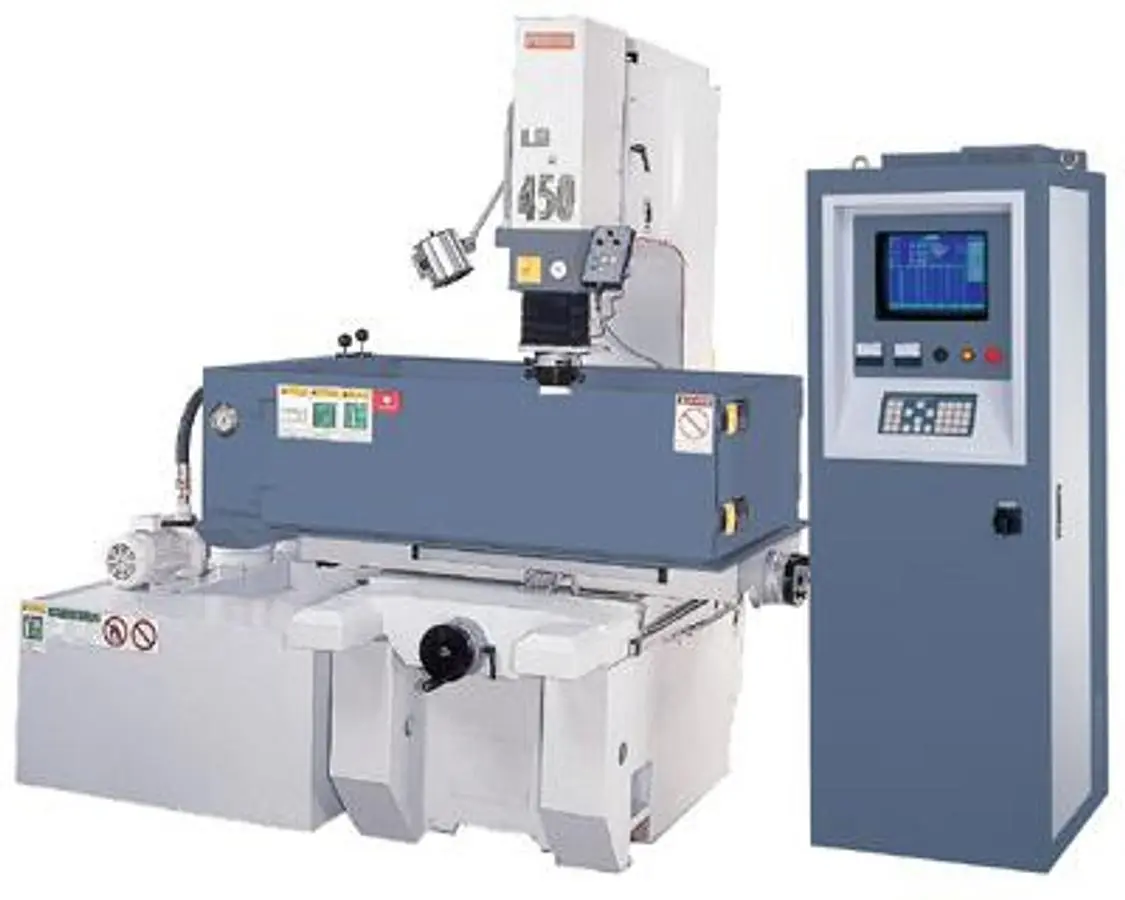

NEW TOP PHOENIX ZNC 30A 50A 75A 100A

NEW TOP PHOENIX ZNC 30A 50A 75A 100A

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
EDM Sinkers
Manufacturer:
TOP PHOENIX
Model:
ZNC 30A 50A 75A 100A
Stock #:
8155851
Specifications

Work tank (W x D x H) inner size: mm/inch 1240x710x400(48.8x28x15.8)
Work table size (X x Y): mm/inch 750x450(29.5x17.7)
Work table travel (X x Y): mm/inch 500x400(19.7x15.7)
Work head travel (W-axis): mm/inch 280(11.0)
Ram servo travel (Z-axis): mm/inch 200(7.9)
Min. & max. distance between end of electrode holder and table surface: mm/inch 180-660(7.1-26.0)
Max. electrode weight: kgs/lbs 120(264)
Max. workpiece weight: kgs/lbs 500(1,100)
External dimension (W x D x H): mm/inch 960x1,200x500(36.7x47.3x19.7)
Packing dimension (W x D x H): mm/inch 1,050x1,320x1,025(41.4x52x40.4)
Net weight: kgs(lbs) 200(440)
Capacity: LITERS 360
Filter paper/pump: PCS 2/1PC
Control axes & method: Z-AXIS, DC SERVO, NC CLOSE LOOP.
Least input increment: 0.005mm / 0.001mm(OPTIONAL)
Max. input increment: ±9999.995mm / 9999.999mm
Coordinates system: INC/ABS
Display system: 15" LCD-TFT
Program data capacity: 100 FILES.
Nominal current: A 30 50 75 100
Total power input: KVA 3 4.5 6 10
Max. material removal rate: mm3/min 180 360 560 700
Electrode wearing rate: % < 0.3
Best surface roughness: Min.Ra 0.27 µ mRa
External dimension: mm( inch) 600x700x1,750(23.6x27.6x68.9)
Packing dimension: mm(inch) 750x850x1,930(29.5x33.5x76)
