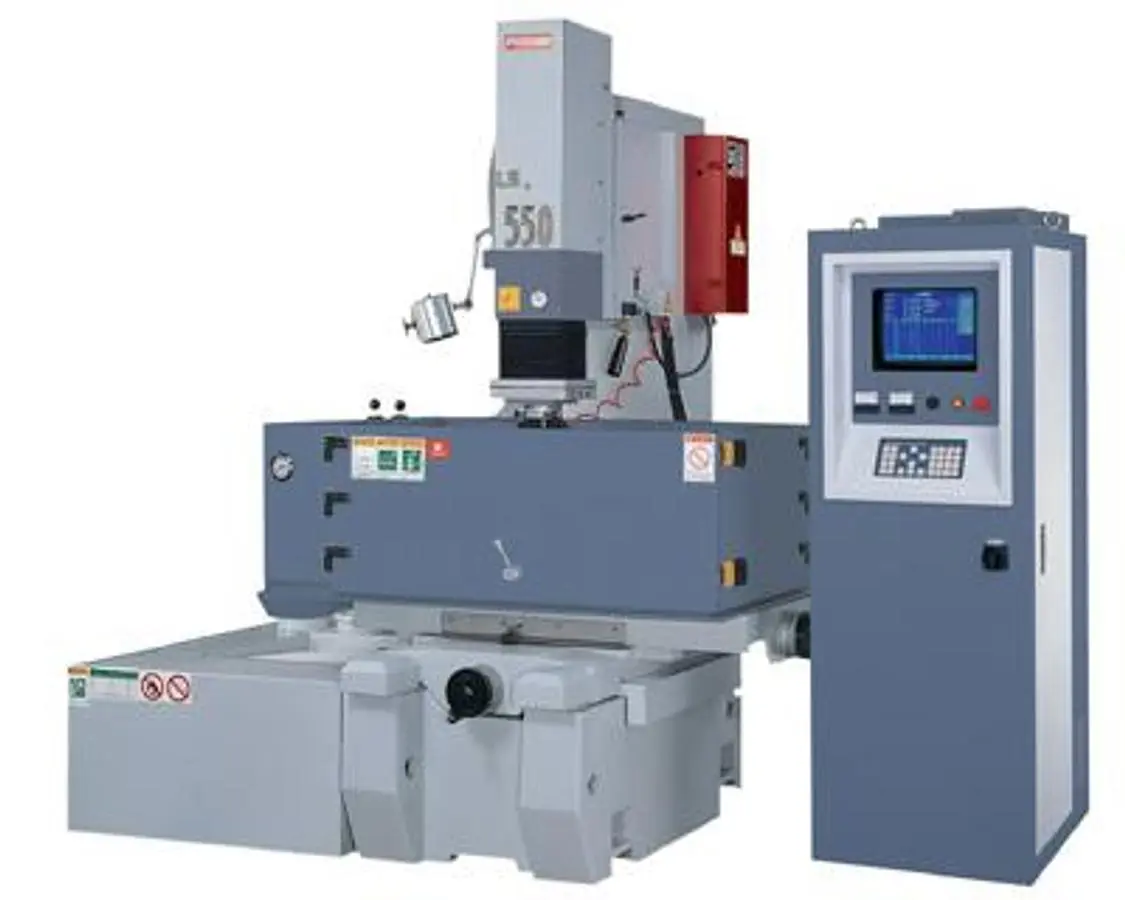

NEW TOP PHOENIX ZNC 30A 50A 75A 100A

Work tank (W x D x H) inner size: mm/inch 1,290x750x500(50.8x29.5x19.7)
Work table size (X x Y): mm/inch 800x500(31.5x19.7)
Work table travel (X x Y): mm/inch 600x500(23.6x19.7)
Work head travel (W-axis): mm/inch 330(13)
Ram servo travel (Z-axis): mm/inch 250(9.8)
Min. & max. distance between end of electrode holder and table surface: mm/inch 0-540(0-21.3)
Max. electrode weight: kgs/lbs 200(440)
Max. workpiece weight: kgs/lbs 600(1,320)
External dimension (W x D x H): mm/inch 940x1,500x500(37x59.1x19.7)
Packing dimension (W x D x H): mm/inch 1,060x1,640x1,025(47.1x64.6x40.4)
Net weight: kgs (lbs) 200(440)
Capacity: LITERS 400
Filter paper/pump: PCS 4/2PC
Control axes & method: Z-AXIS, DC SERVO, NC CLOSE LOOP.
Least input increment: 0.005mm / 0.001mm(OPTIONAL)
Max. input increment: ±9999.995mm / 9999.999mm
Coordinates system: INC/ABS
Display system: 15" LCD-TFT
Program data capacity: 100 FILES.
Nominal current: A 30 50 75 100
Total power input: KVA 3 4.5 6 10
Max. material removal rate: mm3/min 180 360 560 700
Electrode wearing rate: % < 0.3
Best surface roughness: Min.Ra 0.27 µ mRa
External dimension: mm( inch) 600x700x1,750(23.6x27.6x68.9)
Packing dimension: mm (inch) 750x850x1,930(29.5x33.5x76)
