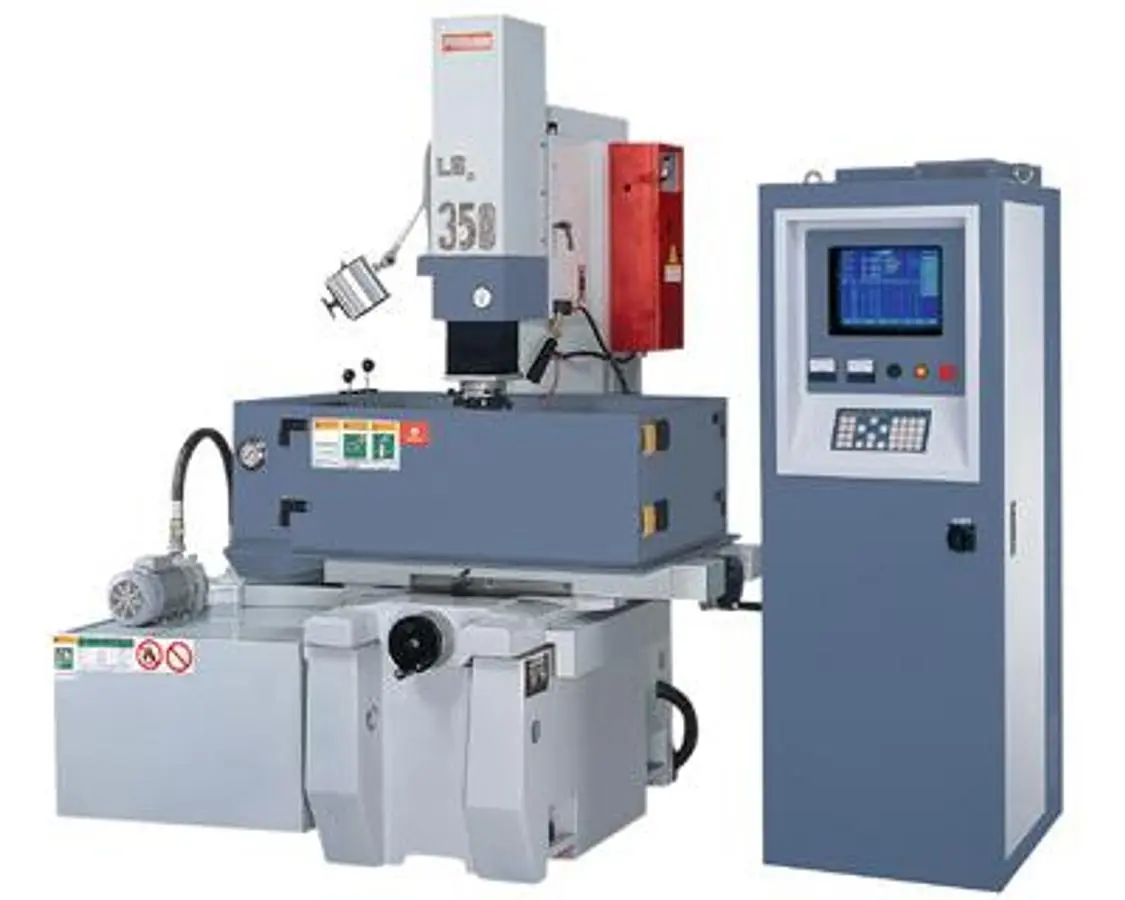

NEW TOP PHOENIX ZNC 30A 50A 75A 100A

Work tank (W x D x H) inner size: mm/inch 950x600x370(37.4x23.6x14.6)
Work table size (X x Y): mm/inch 650x350(25.6x13.8)
Work table travel (X x Y): mm/inch 400x300(15.7x11.8)
Work head travel (W-axis): mm/inch 270(10.6)
Ram servo travel (Z-axis): mm/inch 200(7.9)
Min. & max. distance between end of electrode holder and table surface: mm/inch 30-500(1.2-19.7)
Max. electrode weight: kgs/lbs 70(154)
Max. workpiece weight: kgs/lbs 400(880)
External dimension (W x D x H): mm/inch 760x1,100x500 (29.9x43.3x19.7)
Packing dimension (W x D x H): mm/inch 880x1,210x1,025 (34.7x47.6x40.4)
Net weight: kgs(lbs) 200(440)
Capacity: LITERS 350
Filter paper/pump: PCS 2/1PC
Control axes & method: Z-AXIS, DC SERVO, NC CLOSE LOOP.
Least input increment: 0.005mm / 0.001mm(OPTIONAL)
Max. input increment: ±9999.995mm / 9999.999mm
Coordinates system: INC/ABS
Display system: 15" LCD-TFT
Program data capacity: 100 FILES.
Nominal current: A 30 50 75 100
Total power input: KVA 3 4.5 6 10
Max. material removal rate: mm3/min 180 360 560 700
Electrode wearing rate: % < 0.3
Best surface roughness: Min.Ra 0.27 µ mRa
External dimension: mm( inch) 600x700x1,750(23.6x27.6x68.9)
Packing dimension: mm(inch) 750x850x1,930(29.5x33.5x76)
