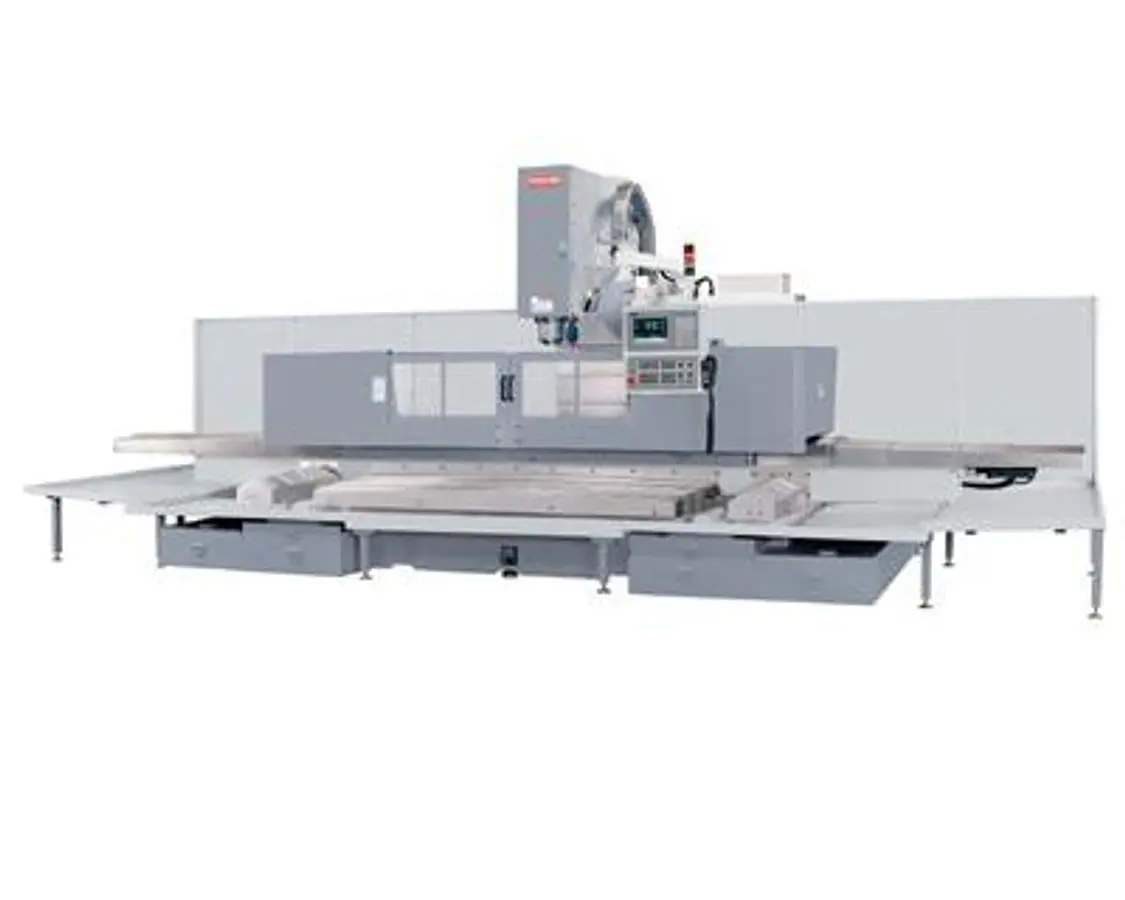

NEW TOP PHOENIX FM-600MH FM-600ATC

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Working surface: 813x3200mm (32"x126")
T-slots (size x number x pitch): 18mmx7x100mm (0.709"x7x3.937")
Max. table load: 2200kgs (4840 lbs)
Longitudinal travel (X axis): 3000mm (118-1/8")
Cross travel (Y axis): 900mm (35-7/16")
Vertical travel (Z axis): 750mm (29-1/2")
Distance from spindle end to table: 100~850mm (3-7/8"~33-7/16")
Distance from spindle center to column: 930mm (36-5/8")
Distance from floor to table surface: 955mm (37-9/16")
Spindle nose taper: BT50
Spindle speeds: vari 4500 r.p.m. (or 6000 r.p.m., opt.)
Cutting feed rate (X, Y, Z axes): 1~5000mm/min. (max.)
Rapid traverse (X, Y axes): 10.0m/min. (max.)
Rapid traverse (Z axes): 10.0m/min. (max.)
Gear ratio of motor pulley to ballscrew pulley on X, Y, Z axes: Direct coupled
Tool storage capacity: ─ 20pcs (carrousel) (or 24pcs, arm type, opt.)
Max. tool weight: ─ 15kgs (33.1 lbs)
Max. tool size (dia. x length): ─ 125x300mm (4-7/8"x11-3/4")
Tool selection: ─ Random
Tool shank: ─ BT50
Pull stud bolt: ─ MAS-P50T-1
Distance from gauge line of tool holder to table: ─ 704mm (27-11/16")
Spindle motor (AC servo): 15/18.5KW (or 18.5/22KW, opt.)
X, Y, Z axes motor: 5KW,MHMA, 2000 r.p.m. + i3 Speed Reducer
Coolant pump motor: AC 1/2HP
Gross weight (Approx.): 21000kgs (46200 lbs) 21500kgs (47300 lbs)
Packing size (L x W x H): 6000x2300x2550mm (236-3/16"x90-9/16"x100-3/8") +6250x2300x1060mm (246"x90-9/16"x41-11/16")
