Northtech offers the strongest line of Straight Line Rip Saws. The NT-SLR14SC might be the runt of the bottom arbor saws, but has the premium engineered design of its big brothers. Premium safety features such as safety interlocks, anti-kickback fingers and rapid braking makes this machine one of the safest single blade rip saws available. The 15HP 14″ blade powers through over 3″ thick stock. Northtech Straight Line Rip Saws won the 2018 Visionary award for their touch activated fence. PRODUCT DIMENSIONS • Min. thickness: 3/16" • Max depth of cut: 3-1/8" (with 14" blade) • Max. width of stock: (Blade to column arms) 18"

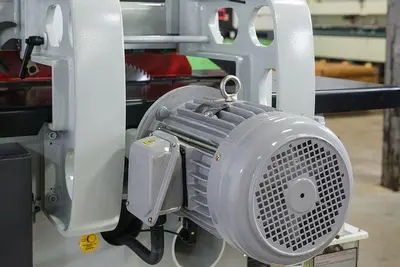

MAIN MOTOR HP: 15 HP
VOLTAGE, FREQUENCY: 230/460 Volt
PHASE: 3 Phase
AMP REQUIREMENT: 20/40 Amps
FEED HP: 1.5 HP
FEED SYSTEM: Split Chain and Race equipped with "True Track"
FEED SPEED RANGE: 40-120 FPM
ELEVATION STYLE: Manual Wheel Adjustment
TOTAL MACHINE HP: 16.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta
PASS-LINE: 31-3/8''
MAX. WORKING WIDTH: 18'' From Blade to Rear Columns
MAX. WORKING THICKNESS: 3-1/8''
GLUE LINE RIP: Guaranteed 8' 4/4 stock @ 50 FPM
ARBOR RPM: 3520 RPM
BLADE SIZE: 14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 70 Tooth
TOOTH SPACING: 5/8''
BLADE KERF: .197''
TRACKING STYLE: "True Track" System
DUST PORT SIZE OUTLET: (1) 4'' Top (1) 6'' Bottom
ARBOR DIAMETER: 2''
CHAIN ADJUSTMENT: True Track Adjustable Chain
HOLD DOWN STYLE: (6) Spring Loaded Hold Downs
KICKBACK FINGERS: (31) Top (59) Bottom Fingers
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
REAR E STOP: Push Button
SAFETY FEATURE: Sawblade Door Safety Interlock, Motor Brake
GUARDING: High Visibility Guarding

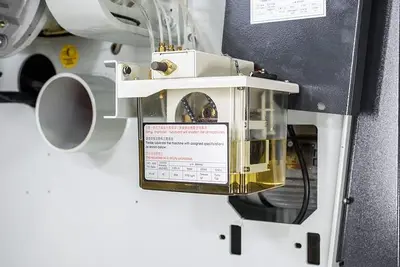

OILER: Automatic Mechanical Oiler
LOW OIL WARNING/SHUT OFF: Low Oil Shut-off
FENCE TYPE: Industrial Cam Lock Quick Release
FENCE DIMENSIONS: 1-3/4'' x 23-3/4''
BRAKE SYSTEM: Pneumatic Brake
FRAME CONSTRUCTION: 1/4'' Steel Construction
WORKTABLE DIMENSIONS: 61'' x 33-1/2''
TABLE CONSTRUCTION MATERIAL: Steel
LASER INCLUDED: 100mw Laser Light & Mount Bracket
DECIBEL RATING: 80 dB
NET WEIGHT: 1930 Lbs.
GROSS WEIGHT: 2150 Lbs.
Machine Dimensions: 69-1/2'' x 54'' x 62-1/2''
Packaging Dimensions: 72'' x 59'' x 71''
