Northtech NT-SLR16SC Precision Straight Line Rip Saw

Northtech offers the strongest line of Straight Line Rip Saws. The NT-SLR16SC might be the runt of the bottom arbor saws, but has the premium engineered design of its big brothers. Premium safety features such as safety interlocks, anti-kickback fingers and rapid braking makes this machine one of the safest single blade rip saws available. The 15HP 16″ blade powers through over 4″ thick stock. Northtech Straight Line Rip Saws won the 2018 Visionary award for their touch activated fence. Feed System

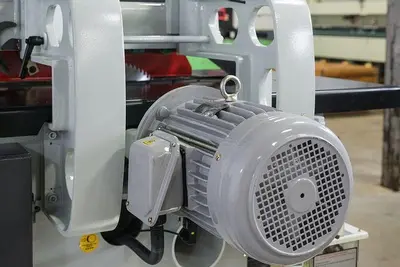

Saw Motor: 15HP, 3PH 230V
Feed: 1.5HP variable from 35' - 110' / minute
Product Dimensions
Min. thickness: 3/16''
Max depth of cut: 4''
Max width of stock: (Blade to column arms) 18''
Features
"True Track" Chain and Race
Table size 69'' X 35-1/2''
Machine frame is constructed of 1'' thick base plate
Solid steel frame with 1'' thick column arms.
Safety door switch with pneumatic motor brake.
2'' Arbor and large support bearings.
Glue line guarantee on 8/4 stock is 8' at 60' / minute.
All motors and electricals are UL rated.
Industrial fence with cam lock quick release on rack and pinion glide.
Two rows of heavy duty kickback fingers.
(8) large pressure rollers for optimum glue line ripping.

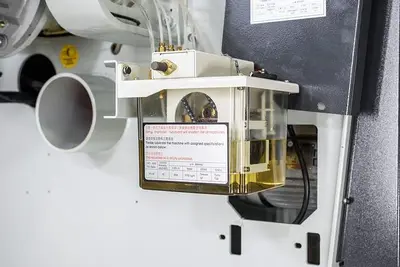

An automatic mechanical oiling system with low level alert.
A 100mw laser light and mounting bracket are included.
(1) Tool box
Amperage requirements: 15HP + 1.5HP 230V / 460V: 48A / 24A.
Dust requirments: (1) 4'' dust port requiring 450 CFM
(1) 6'' dust port requiring 1,000 CFM
Weight: 2,400 lbs.
Machine dimensions: (L) 84'' X (W) 58'' X (H) 74''
Warranty is one year parts
All machines are tested at factory prior to shipment providing trouble free start up.

MAIN MOTOR HP: 15 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 20/40 Amp
FEED HP: 1.5 HP
FEED SYSTEM: Split Chain and Race equipped with "True Track"
FEED SPEED RANGE: 40-120 FPM
VARIABLE FEED SPEED: Manual Clutch Adjustment
ELEVATION STYLE: Manual Wheel Adjustment
TOTAL MACHINE HP: 16.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt

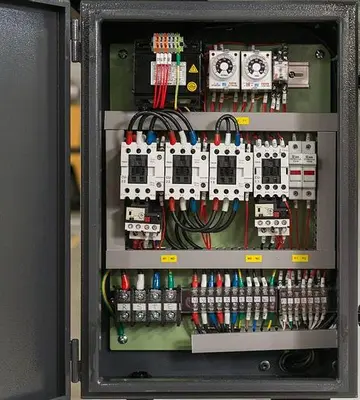

CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta
PASS-LINE: 33-1/4''
MAX. WORKING WIDTH: 18-1/4'' From Sawblade to Rear Columns
MAX. WORKING THICKNESS: 4'' with 16'' Sawblade 3'' with 14'' Sawblade
GLUE LINE RIP: Guaranteed 12' 4/4 stock @ 50 FPM
ARBOR RPM: 3520 RPM
BLADE SIZE: 14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 70 Tooth
TOOTH SPACING: 5/8''
BLADE KERF: .197 In.
DUST PORT SIZE OUTLET: (1) 4'' Top (1) 6'' Bottom
ARBOR DIAMETER: 2''
CHAIN ADJUSTMENT: True Track Adjustable Chain
HOLD DOWN STYLE: 8 Spring Loaded Hold Down Rollers

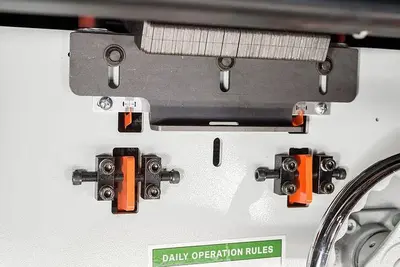

KICKBACK FINGERS: (59) Lower (32) Top
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90PSI
REAR E STOP: Push Button
SAFETY FEATURE: Sawblade Door Safety Interlock, Motor Brake
GUARDING: High V
FENCE TYPE: Industrial Cam Lock Quick Release
FENCE DIMENSIONS: 1-3/4'' x 23-3/4''
BRAKE SYSTEM: Pneumatic Brake
FRAME CONSTRUCTION: 1'' Base 1/4'' Frame 3/4'' Arms
WORKTABLE DIMENSIONS: 69'' x 35''
TABLE CONSTRUCTION MATERIAL: Steel
LASER INCLUDED: 100mw Laser Light & Mount Bracket
DECIBEL RATING: 84 dB
NET WEIGHT: 2170 Lbs.
GROSS WEIGHT: 2285 Lbs.
MACHINE DIMENSIONS: 77'' x 57'' x 66''
PACKAGING DIMENSIONS: 81'' x 58'' x 74''
