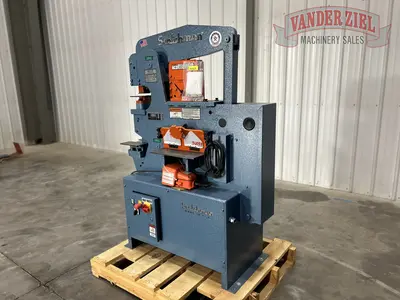

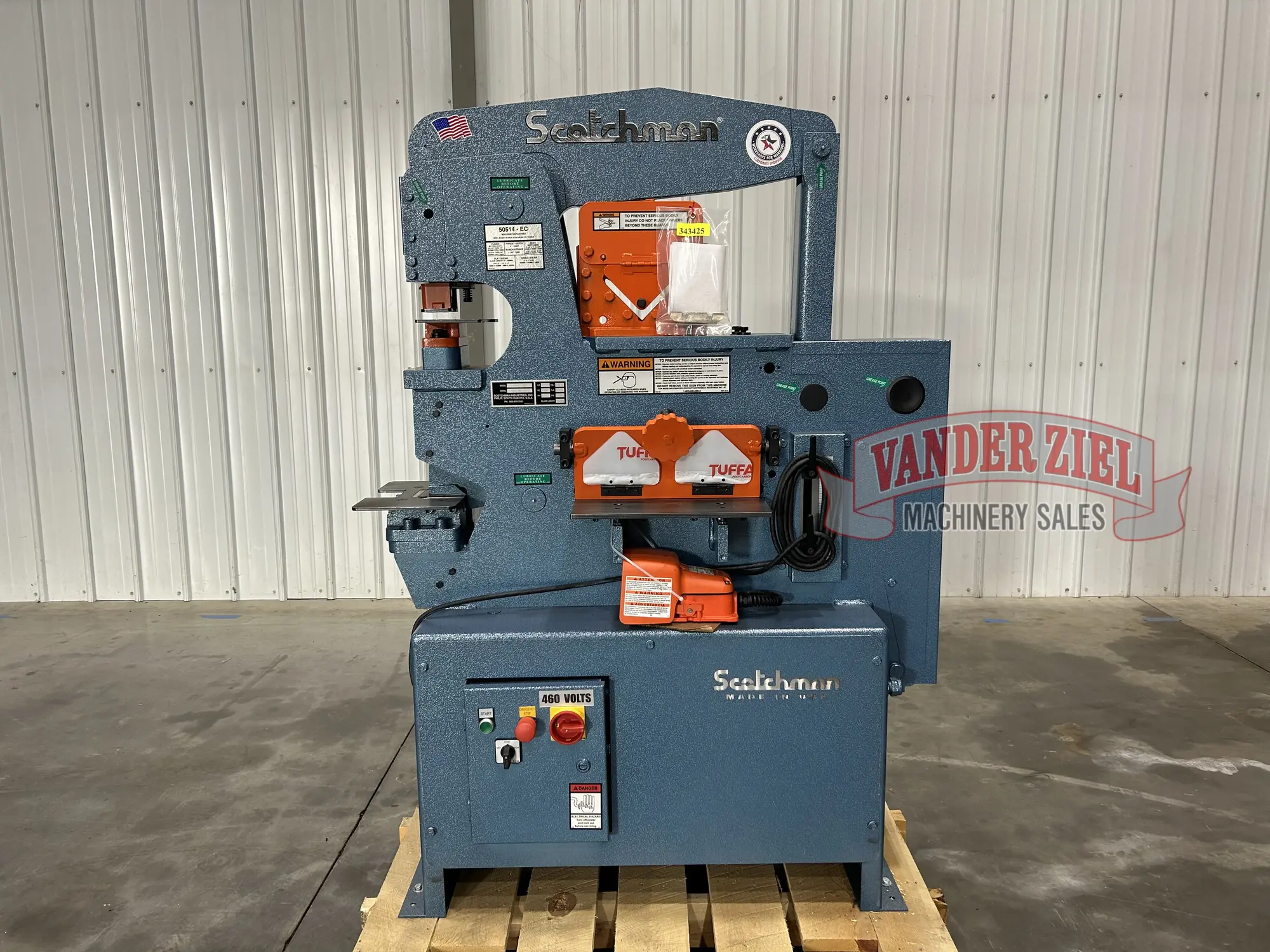

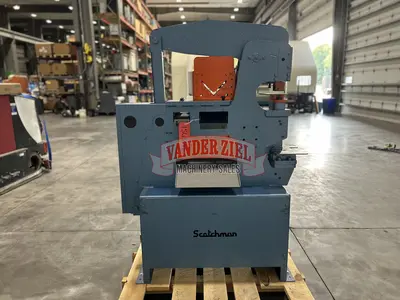

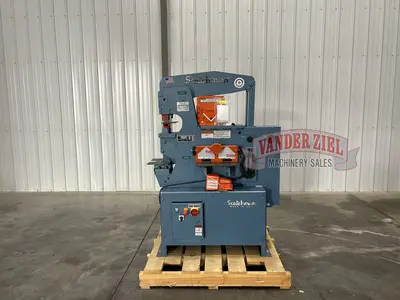

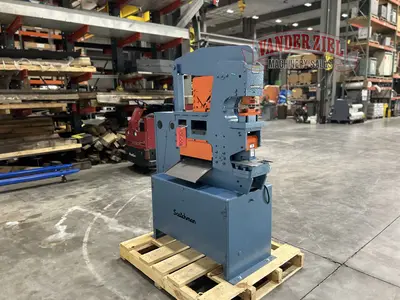

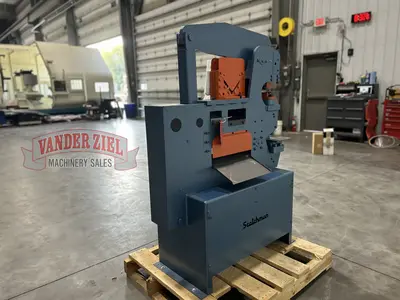

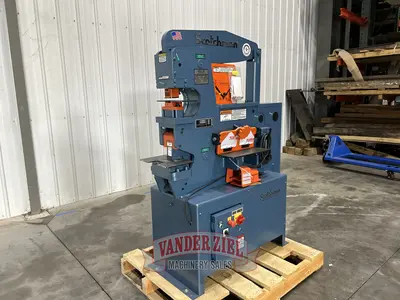

Scotchman 50 Ton Ironworker

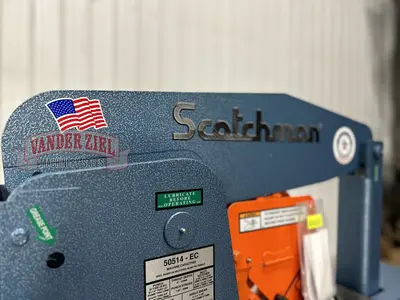

Scotchman 50 Ton Ironworker, Model 50514-EC with LED Lighting, 220 Volt / 1 Phase
Asset # 17034

Specifications:
Rated on:    65,000 PSI Tensile
Punching Capacity    50 ton, 1-1/4" in 1/2", 13/16" in 3/4"
Special Tooling     2-1/4" Max. Dia.
Throat Depth     6"

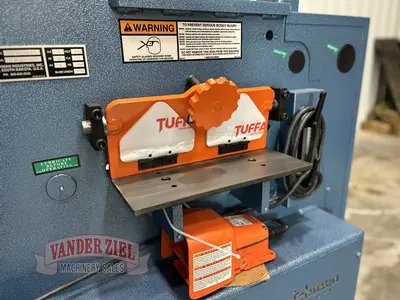

Flat Bar Shear     14" Length, 3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14"
Opt. Saber Blade     1/2" x 10", 3/8" x 12"

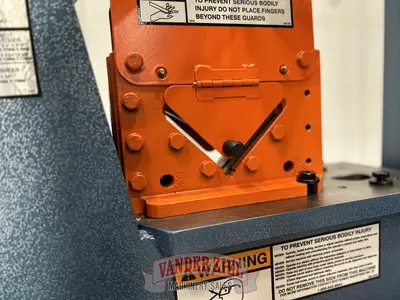

Angle Shear 90°    4" x 4" x 3/8"
Angle Shear 45°     2" x 2" x 3/8"
Brake 8"     30 ton
Brake 12"     25 ton
Open End Brake    Max. 1/4" x 3" Flat or Angle Iron
Pipe Notcher     3/4", 1"
Schedule 40 I.D.    1-1/4", 1-1/2", 2"
Rectangle Notcher    2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" X 3/8"
90° V. Notcher     6" x 6" x 1/8", 3" x 3" X 1/4"
Strut Shear    Samples Required
Round Rod (Max.) 1/4" to 1", 5 Cavity, 7/16", 9/16", 5/8", 3/4", 1"
Square Rod (Max.)    1/4" to 3/4", 1 Cavity, 3/4"
Square Tube Shear     1/2" to 1", 12 GA.
Picket Tool     1/2", 3/4", 1", 16 Gauge
Strokes Per Minute in Light Material     1/4" stroke [Punch Station]
Strokes Per Minute in Heavy Material     3/4" stroke [Punch Station]
Hydraulics     2350 psi
Motors Standard     3 HP, 1 PH, 230 Volts
Dimensions     W-29" x L-47" x H-59"
Shipping Weight     1,515 lbs.
Ironworker is equipped with PN 090512 - LED Light Package
Preliminary Specifications - Subject to Verification
