2020 Platinum PB-102A II
Overview
Description

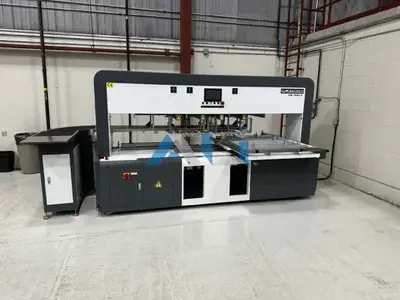

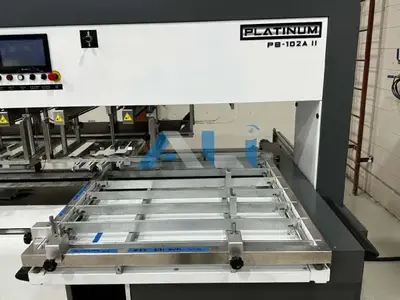

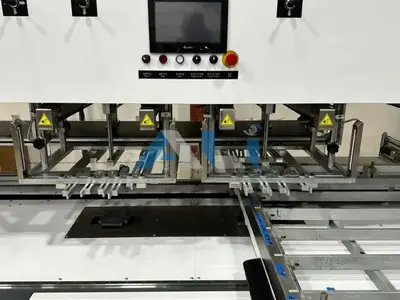

2020 Platinum PB-102A II
This blanker is a great machineto help with production time. This is another great offing from Asset Liquidity's bindery and offset printing equipment.
Specifications
2020 Platinum PB-102A II
Fully-Automatic Dual-head blanking system for running sheets with nested blanks,
Heavy-Duty, quality-built gantry structure main frame,
Frame style supporting base for precision blanking action ensuring damage free loads,
Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement,
Operator friendly touch screen for quick and simple programing,
Automated loading to conveyor to reduce labor and increase blanking speed,
Max Sheet Size: 1020 x 960mm (40.15″ x 37.8″),
Min. Sheet Size: 300mm x 300mm (11.8″ x 11.8″),
Max. Blank Size: 450mm x 350mm (17.7″ x 13.8″),
Min. Blank Size: 35mm x 60mm (1.4″ x 2.4″),
Maximum Working Pressure: 2.5,
Pile Height: 50mm – 85mm (2″ – 3.3″),
Speed: 20 Cycles / Hour
