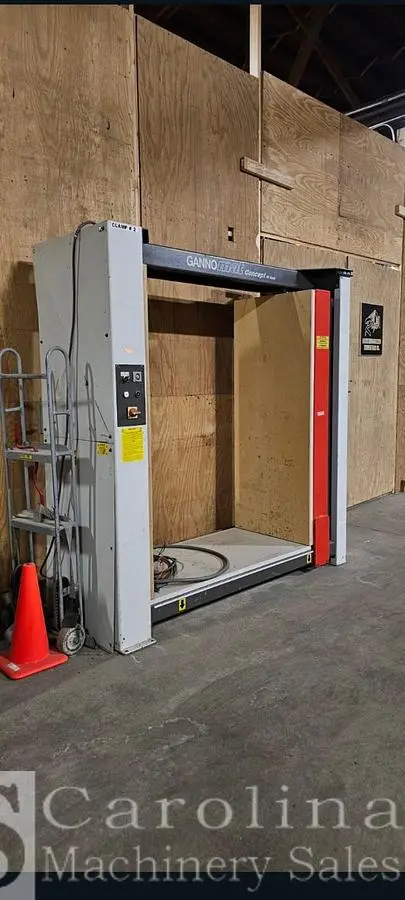

Sturdy stress-free steel frame construction
Steel bar side pressure beam construction with solid platen surface
Continuous left-side counter pressure surface and solid floor
Motorized adjustment of the pressure beam by precision trapezoidal-threaded spindles (for optimal lead and concentric accuracy), heavy duty machine nut with integral grease reservoir
Selector knob for variable pressing force anywhere between 300kg - 2200kg
Pressing force of the pressure beam is digitally regulated by frequency changer for wear-free torque transfer
Travel/pressing velocity is 5mm-10mm-25mm/second by selector knob
Simple operation by directional push buttons
Adjustable clamping cycle time 0-30 minutes (programmable to seconds or hours), with automatic opening
Working dimensions:
Working/loading height (without legs) 200mm (7-7/8")
Length - Minimum 150mm (5-29/32"), Maximum 1300mm (51-3/16")
Height - Minimum 150mm (5-29/32"), Maximum 1700mm (66-59/64")
Depth - 700mm (27-35/64")
Power Requirements:
UL listed electrical components, Standard voltage 220v, 3 phase, 60 Hz
Wye power not delta
All case clamps require 220V 3-phase wye power with ground
All three phase must measure the same Voltage from A, B or C phase to neutral (120V, 277V) and between phases at either 208V, 220V or 480V
Akins machinery division of wurth baer supply recommends that a licensed electrician for your jurisdiction measure the power in your facility with proper equipment to assure that the connection provides wye power
If wye power is not available a delta to Wye isolation transformer must be procured and properly installed prior to providing power to the gannomat machine
Connection of any of the listed gannomat
Machines to a delta or open delta power sources
Viods factory and OEM component warranties
Isolation transformer is needed with Delta (AKA: "high leg") power
